    Apple Dental RVG Sensor

    Dental Equipment

    3

    High resolution, reliable, photon counting, waterproof, and user-friendly for digital radiography

    MRP: ₹ 98045.00   ₹ 83045.00

    Discount: 15.3% off

    Availability: 10 In Stock

    Apple Dental RVG Sensor are wide dynamic range and high contrast resolution of the sensor work together to make unparalleled clarity for both the tooth and subtle details.Multiple image processing algorithms help to improve image contrast and sharpness with more exquisite details of the soft tissues.

    Profound Reliability:-

    • The whole imaging procedures go directly from data acquisition to immediate image display and reading. There is NO need for any X ray film.

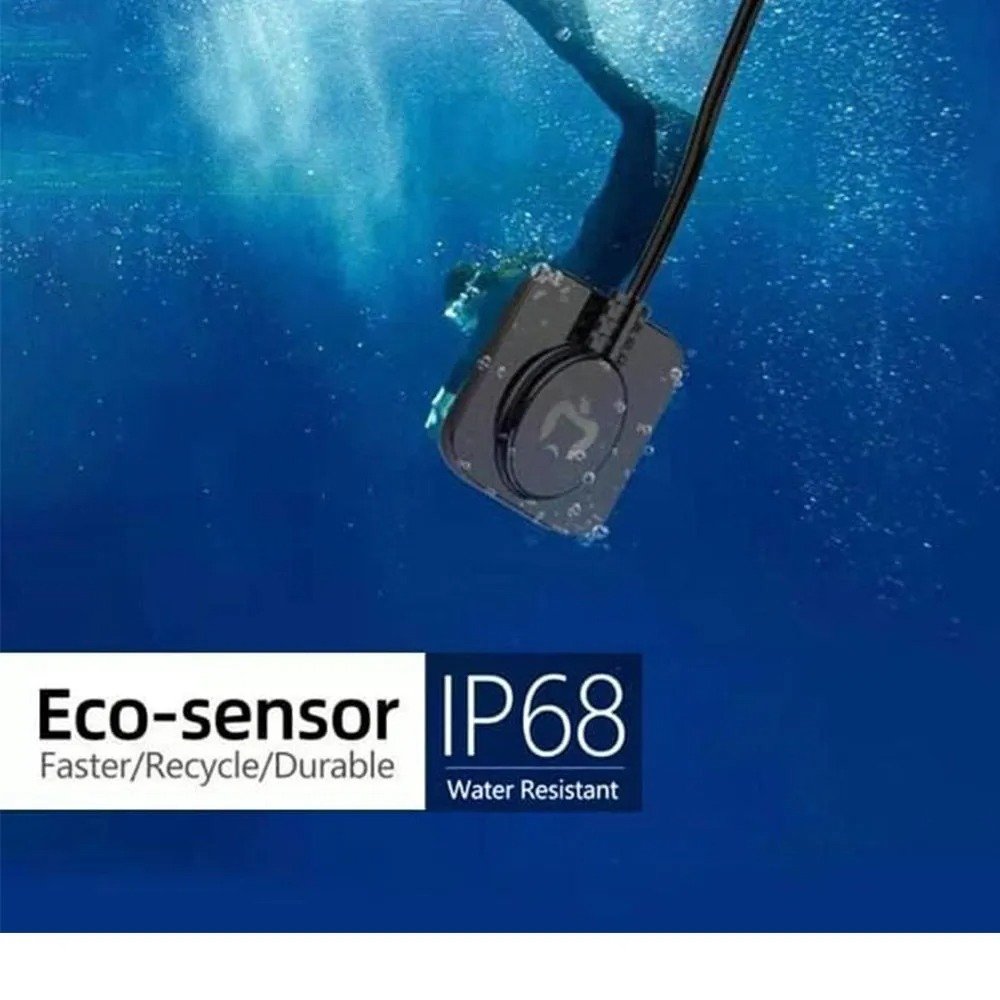

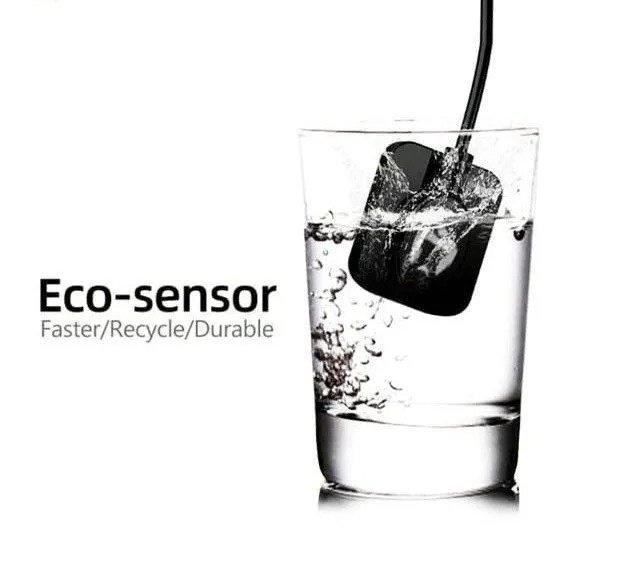

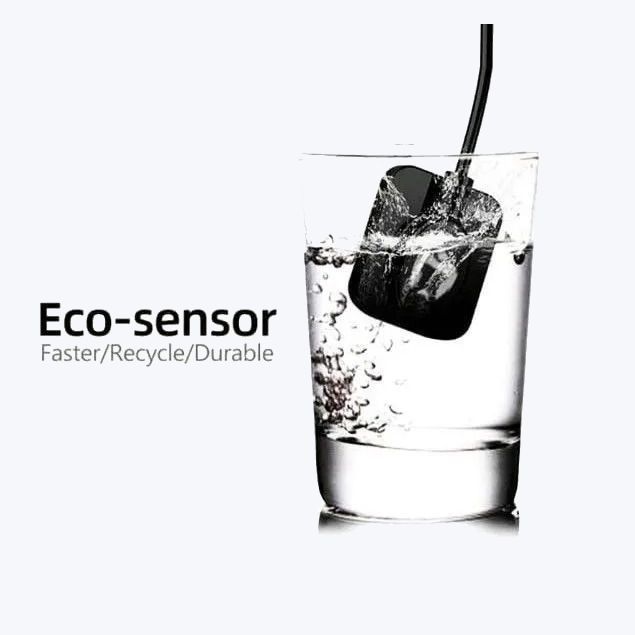

    • The sensor casing is purposely designed to resist shocks, bite, and drops to ensure product durability. It is absolutely waterproof, able to be a plate reader.

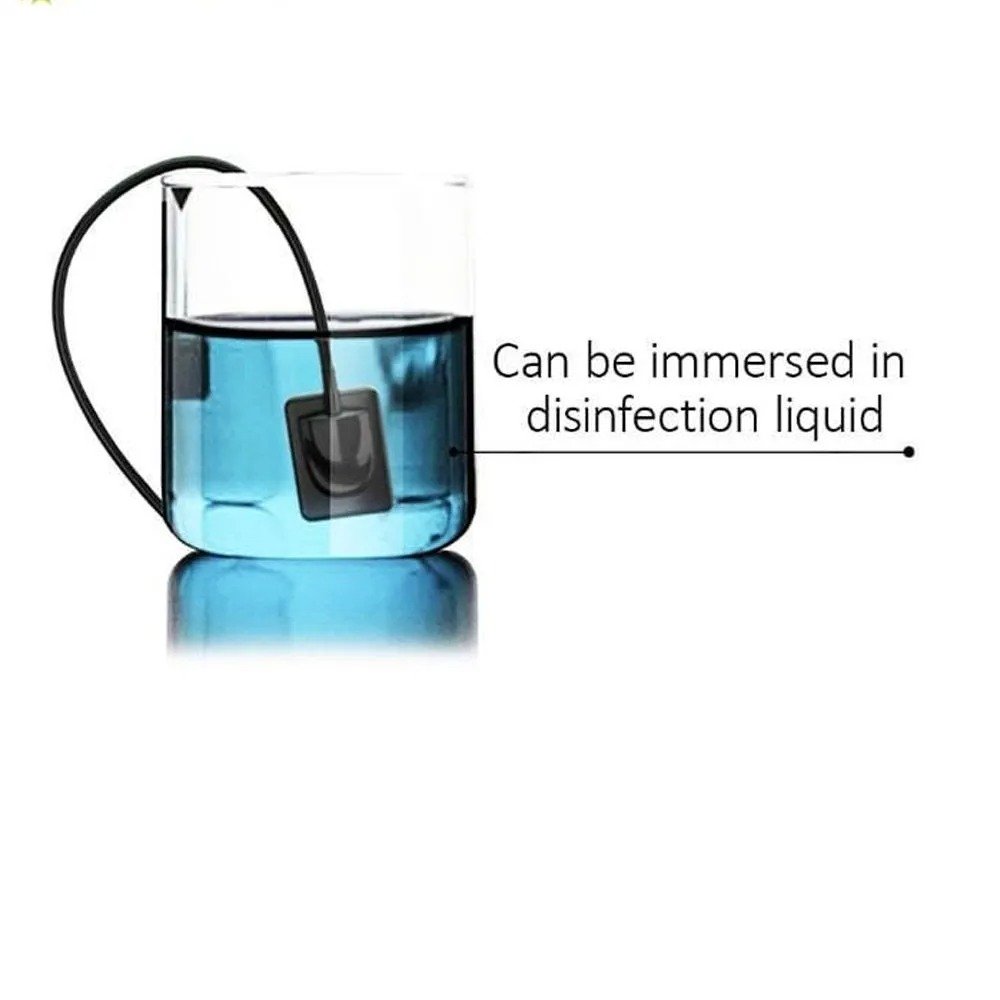

    • Sensor can be immersed in disinfecting solutions for better hygienic and safety protection. The protective sheaths reduce the risk of cross-contamination and protect plates from scratches and heat.
    • Extraordinary Usability.
    • The computer supports Iigtingfast data transmission and enables real-time imaging. User-friendly design also compatible with the currently available imaging technology on the market.

    Photon Counting Detector Technology:-

    • Our sensor detector is tally digital, without a need for film processing. Photon counting detector technology delete converts X-rays into digital signals directly; and with standard microelectronics fabrication process, thus enjoying sizeable cost advantage.It provides delete high dynamic range, high contrast-resolution images at comparatively lower dosage.

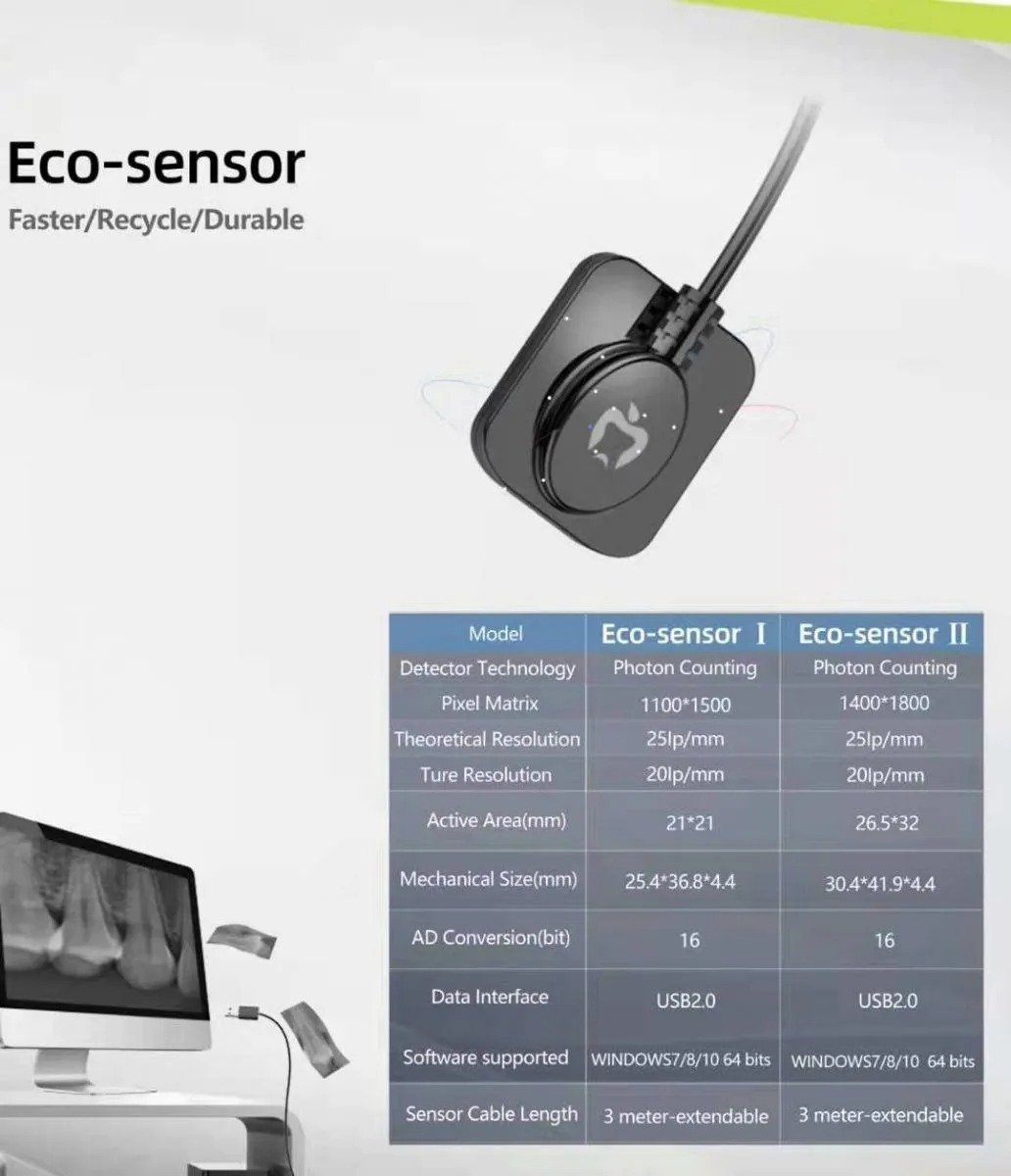

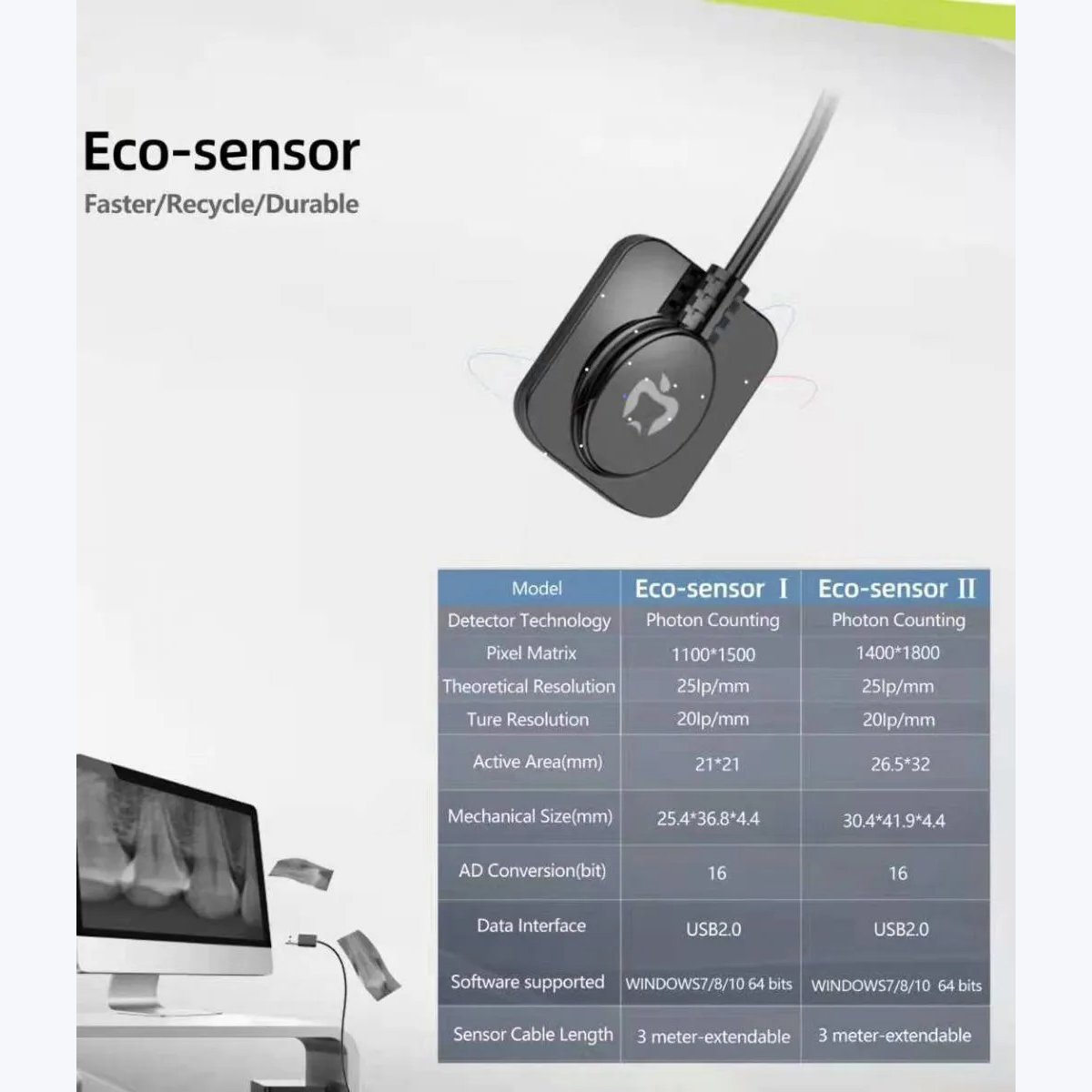

    Apple Dental RVG Sensor Standard Size 1

    • Detector technology - photon counting.
    • Pixel matrix - 1150 x 1500.
    • Theoretical resolution - 25lp/mm.
    • True resolution - 20lp/mm.
    • Active area (mm) - 21 x21.
    • Mechanical size (mm)  - 25.4 x 36.8 x 4.4.
    • Data interface - USB 2.0.
    • Sensor cable length - 3 meter extendable.



    Apple Dental RVG Sensor Standard Size 2

    • Detector technology - photon counting.
    • Pixel matrix - 1400 x 1800
    • Theoretical resolution - 25lp/mm.
    • True resolution - 20lp/mm.
    • Active area (mm) - 26.5 x 32.
    • Mechanical size (mm)  - 30.4 x 41.9 x 4.4
    • Data interface - USB 2.0.
    • Sensor cable length - 3 meter extendable.

    • 1 X Intraoral sensor
    • 1 X USB Connection Cable
    • 1 X Workstation Software
    • 1 X Adaptor
    • 1 X Protective Sheath
    • 1 X Silicon Loop
    • 1 X Sensor Holder

    How to Installation:

    • Connect Sensor: Plug the sensor's USB cable into a compatible port on your computer.
    • Install Drivers: Follow the provided instructions to install the necessary drivers for the sensor. This usually involves running an installation program.
    • Software Setup: Install the accompanying imaging software. Follow prompts to set up preferences and ensure compatibility.
    • Calibration: Some systems may require calibration. Follow the calibration procedures provided in the user manual or software instructions.
    • Verify Connectivity: Confirm that the sensor is recognized by your computer and imaging software. Troubleshoot any connectivity issues if necessary.
    •

    How to use:

    • Prepare Patient: Position the sensor appropriately for the specific dental procedure. Ensure the patient is ready and comfortable.
    • Acquisition: Initiate X-ray exposure using the dental X-ray machine. The sensor captures the X-rays and converts them into digital signals.
    • Immediate Display: The captured image is instantly displayed on the computer screen. Evaluate the image quality and retake if necessary.
    • Image Enhancement: Use the imaging software to enhance image contrast and sharpness if needed. Explore various processing tools for better diagnostics.
    • Storage: Save and organize images in the patient's digital records. Follow any data storage protocols or compliance requirements.
    • Cleaning and Maintenance: Clean the sensor according to the provided guidelines. Ensure it's properly disinfected for hygiene.
    • Disconnection: Safely disconnect the sensor from the computer after use.
