Shades : A1, A2, A3, A3.5,B1,B2, B3

Technical Data :

• Curing Time: 40 Sec.
• Depth of Cure: 1.0 (Opaque Shade), 1.5 (Other Shade)
• Compressive Strength: 300 Mpa
• Flexural Strength: 140-150 MPa

Composition :

Fusion Composite : Bisphenol A Glycidyl methacrylate, Bisphenol A diethoxy methacrylate, Urethane Dimethacrylate, Triethylene Glycol Dimethacrylate, Silanated Barium Glass Powder, Amorphous Fumed Silica.

Fusion Bond 5 : Urethane Dimethacrylate, Triethylene Glycol Dimethacrylate, Bisphenol A Diglycidyl Methacrylate, 2-Hydroxy Ethyl Methacrylate, Tertiary Butanol, Photoinitiators, Stabilizer

Actino : Phosphoric Acid, Methylene Blue Indicator, Glycerine, Ethanol, Purified Water and Amorphous Silica.

Storage Conditions :
Store at temperature between 10°C to 24°C. Close the cap carefully after use. Keep away from moisture. Shelf life not affected after opening if stored in a cool dry place.

Shelf Life : 3 years from the date of manufacturing.

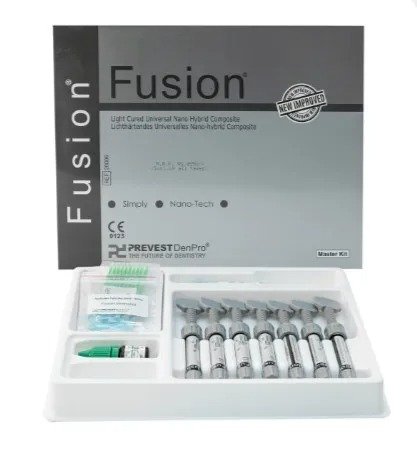

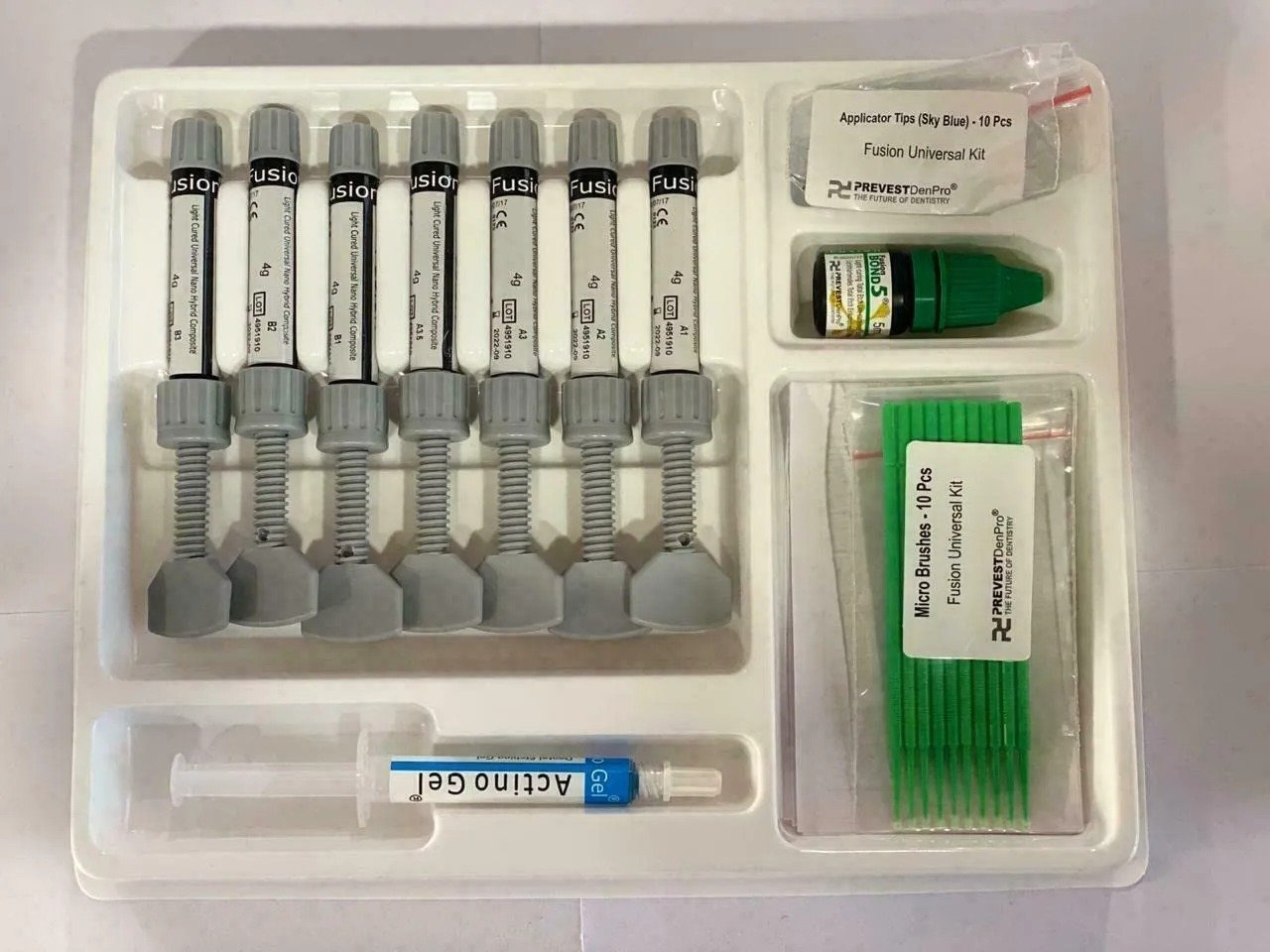

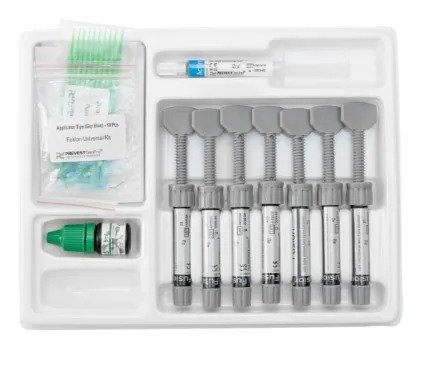

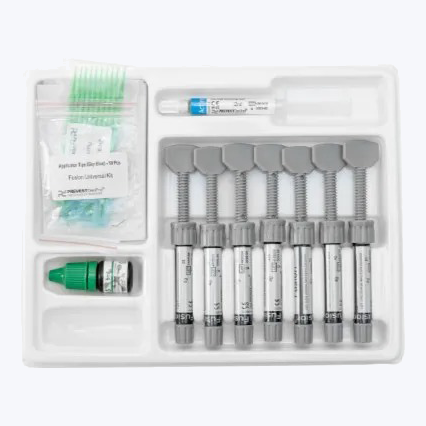

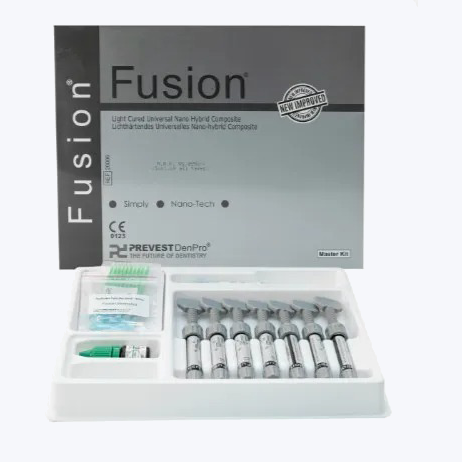

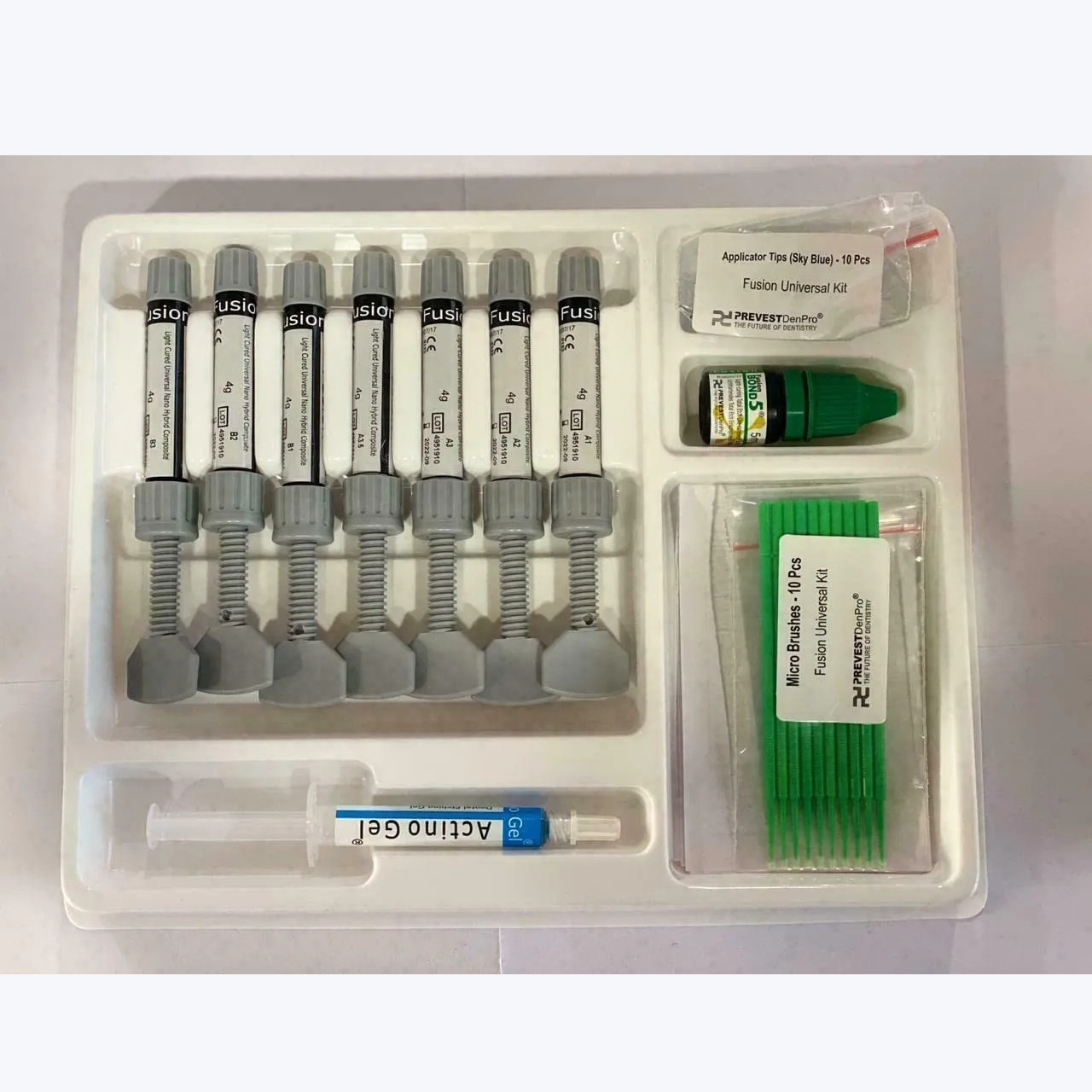

Combo Kit :-

• 7 X 4g syringes (A1, A2, A3, A3.5,B1,B2, B3)

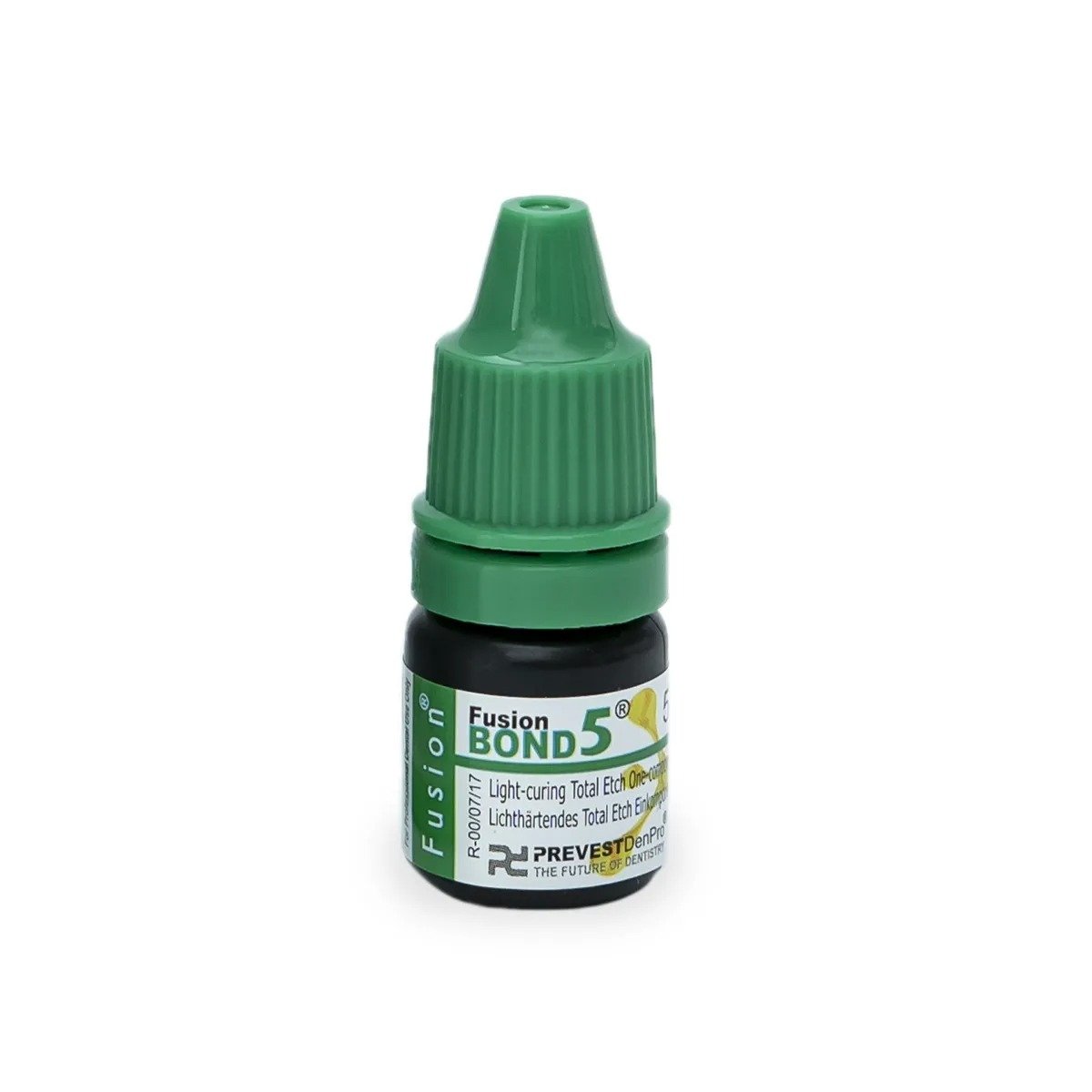

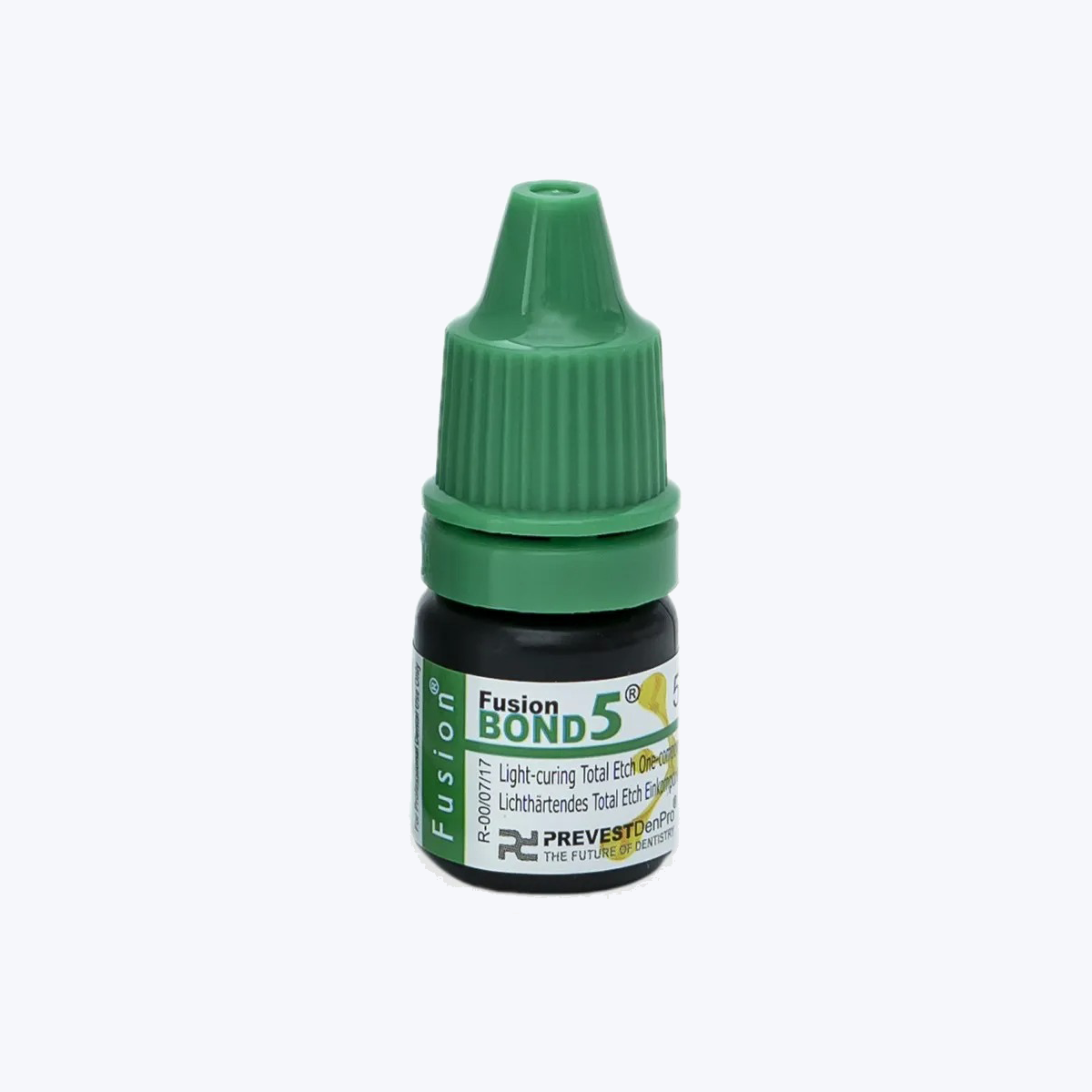

• 1 x 5ml Bottle Fusion Bond 5

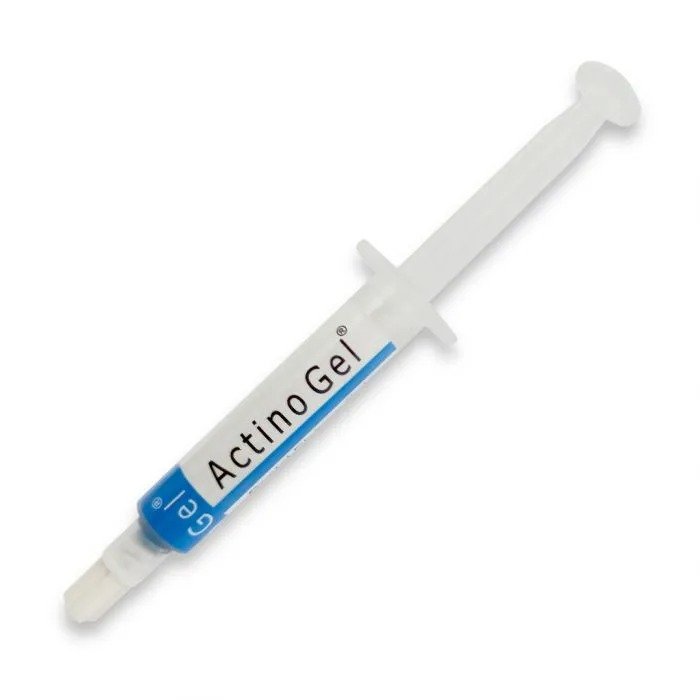

• 1 x 2 ml syringe Actino Etchant Gel
• 10 x Micro Brushes
• 10 x Applicators Tips
• 1 x Instruction Manual

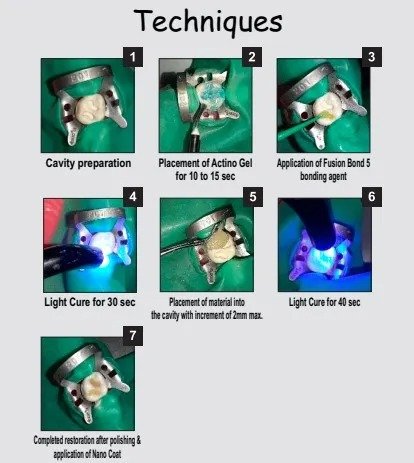

•  Clean the tooth to be treated and adjacent teeth with a brush and prophy paste.
   Select the shade using VITA Shade Guide.
•  Prepare the cavity using conservative cavity technique No residual amalgam or other base material should be left in the cavity.
•  Cover the area close to the pulp with hard setting CALLC Light Cure Calcium Hydroxide paste.
•  Apply Actino 37% Phosphoric Acid Etchant Gel for 15-20 sec.
•  Remove Gel with vigorous water spray and rinse conditioned area for at least 10 sec.
•  Blot dry conditioned area with a moist cotton pellet.
•  Apply Fusion Bond 5 dentine bonding agent with a disposable brush to the entire cavity.
•  Ensure thorough wetting of the entire cavity.
•  Allow 20 secair drying and re apply another coat of dentine bonding agent.
•  Remove excess solvent by gently drying with dry air for at least 5sec to ensure uniform glossy surface.
•  Cure adhesive for 20-30 sec using standard curing light.
•  Remove Fusion syringe cap and dispense material onto a mixing pad.
•  Place the material into the cavity using a suitable placement instrument.
•  After dispensing, screw plunger should be rotated anti clock wise by half to full turn to release residual pressure inside the syringe.
•  Contour the material in the cavity. Light cure for 40 sec using standard curing light.
•  When necessary build in increments of 2mm maximum using a layering technique.
•  Shape and polish using standard technique and at last stage apply Nano Coat protective varnish.
