Technical Data :

1) Mixing Time : 45 - 60 sec.

2) Working Time : <10 min.

3) Setting Time : 10 - 15 min.

4) Flow : 65 mm

5) Solubility : >2%

Composition :

• Polydimethyl siloxane,
• Nano Silver powder,
• Silicone Oil,
• Platinum Catalyst,
• Zirconium Dioxide,
• Paraffin Liquid

Storage Conditions :

• Store at temperature between 10°C to 24°C. Close the cap carefully after use.
• Keep away from moisture. Shelf life not affected after opening if stored in a cool dry
  place.

Shelf life : 3 years from the date of manufacturing.

• 1 x 10g Cartridge (Base/Catalyst)
• 1 x Mixing Spatula
• 1 x Mixing Pad

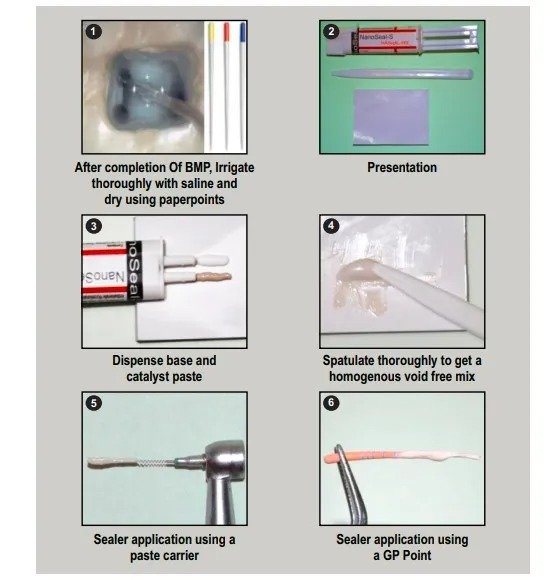

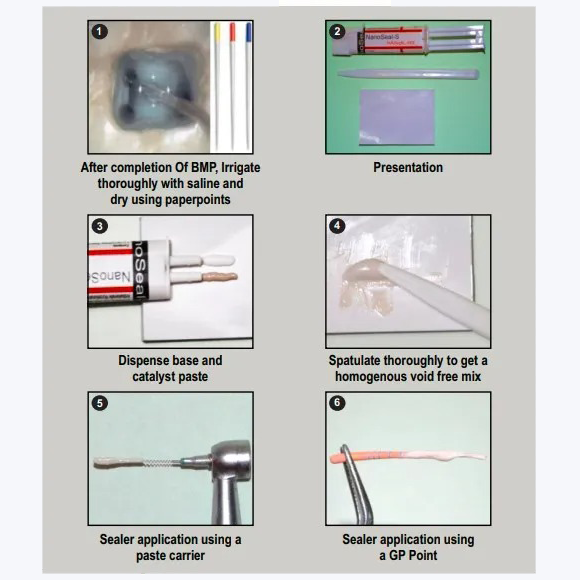

After shaping and cleaning, root canal should be filled with NanoSeal-S in combination with gutta-percha.

1. After standard root canal preparation, the root canal should be thoroughly irrigated with
sterile water to remove traces of irrigating agents which would interfere with the curing of
NanoSeal-S.

2.The root canal should be thoroughly dried using alcohol/ paper points .

3. The sealer must be dispensed from the dual barrel syringe in a 1:1 ratio. The sealer must be
mixed thoroughly to be make a void free homogenous mix.

4.The root canal can be coated with NanoSeal-S using a gutta-percha point or a paste carrier.

5. NanoSeal-S has a working time less than10 min and a setting time of 10-15 min.

6. Use of heated instruments can accelerate the setting of NanoSeal-S.

7. After use, the dual barrel syringe must be thoroughly cleaned using a tissue paper and
properly sealed to avoid contamination.
