TECHNICAL SPECIFICATIONS:

• Product Name : Api Brushless Lab Micromotor
• Model : Micro Motor Brushless 803 T 8.5
• Application/Usage : Hospitals and Clinics
• Speed Range : 50000 rpm
• Torque : 8.5 Ncm
• Voltage : 201-500 V
• Input : AC110/220-240, 50/60Hz
• Dimensions : 20x 15.5x 9.5 cm (Control Unit)
• Weight : 2.3Kg (Control Unit)

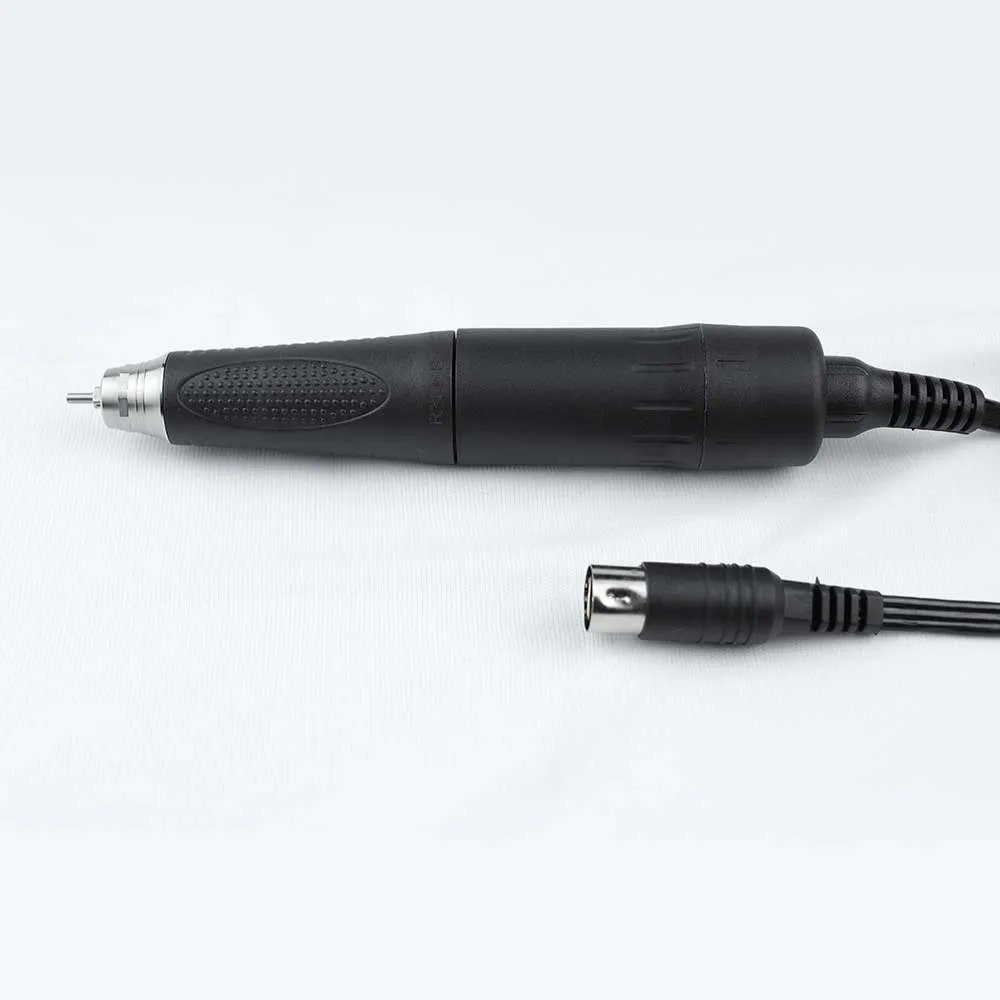

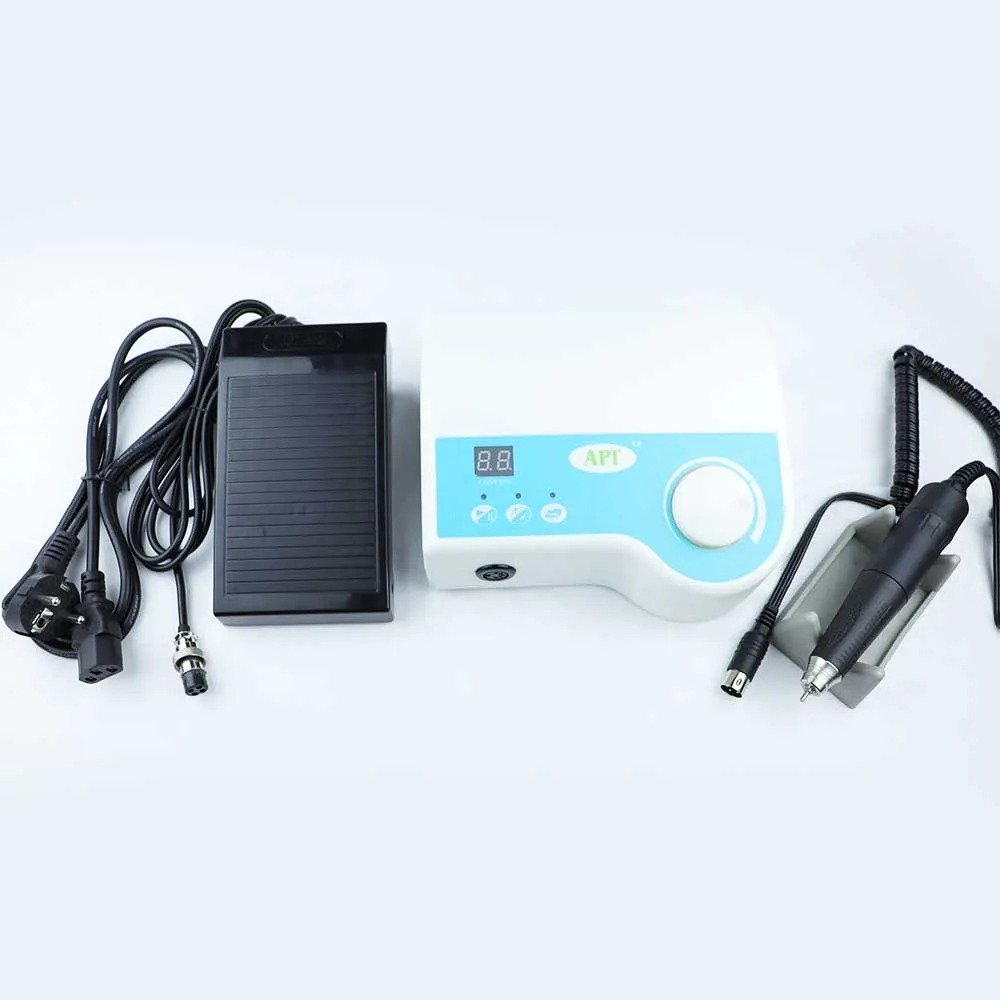

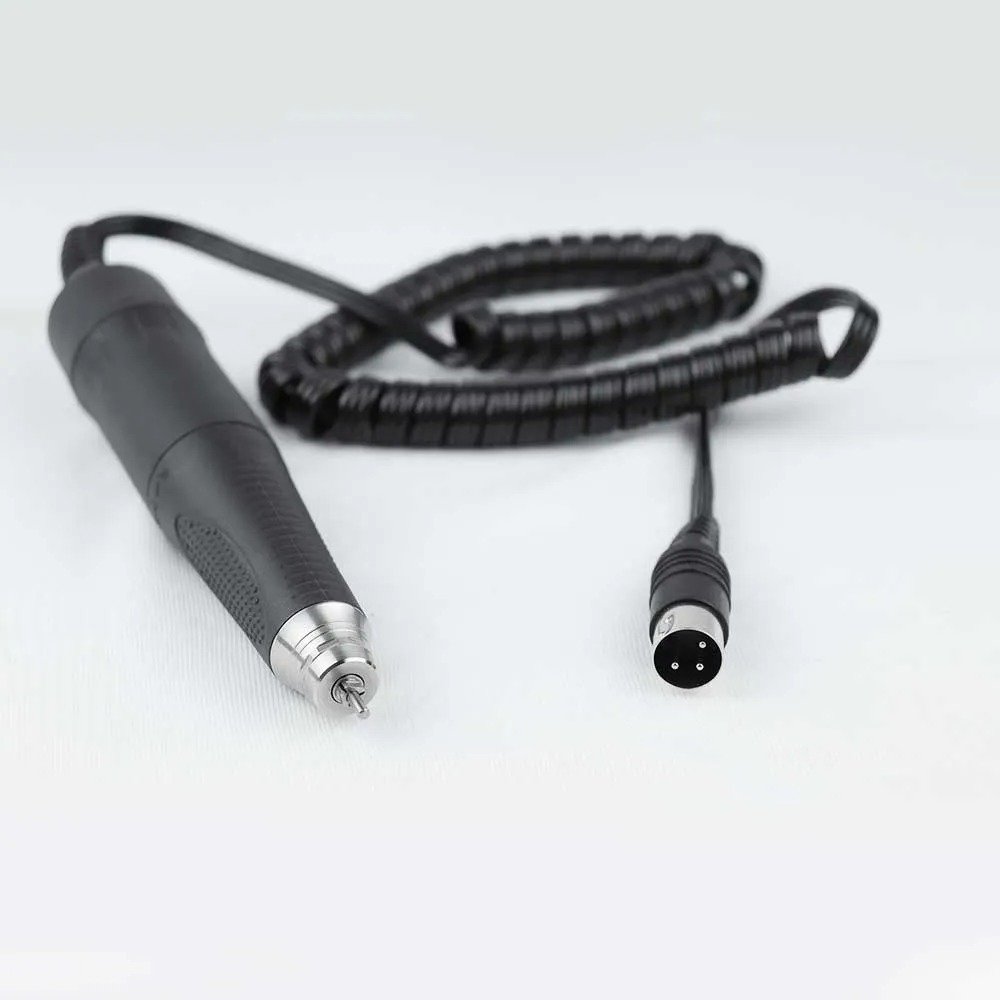

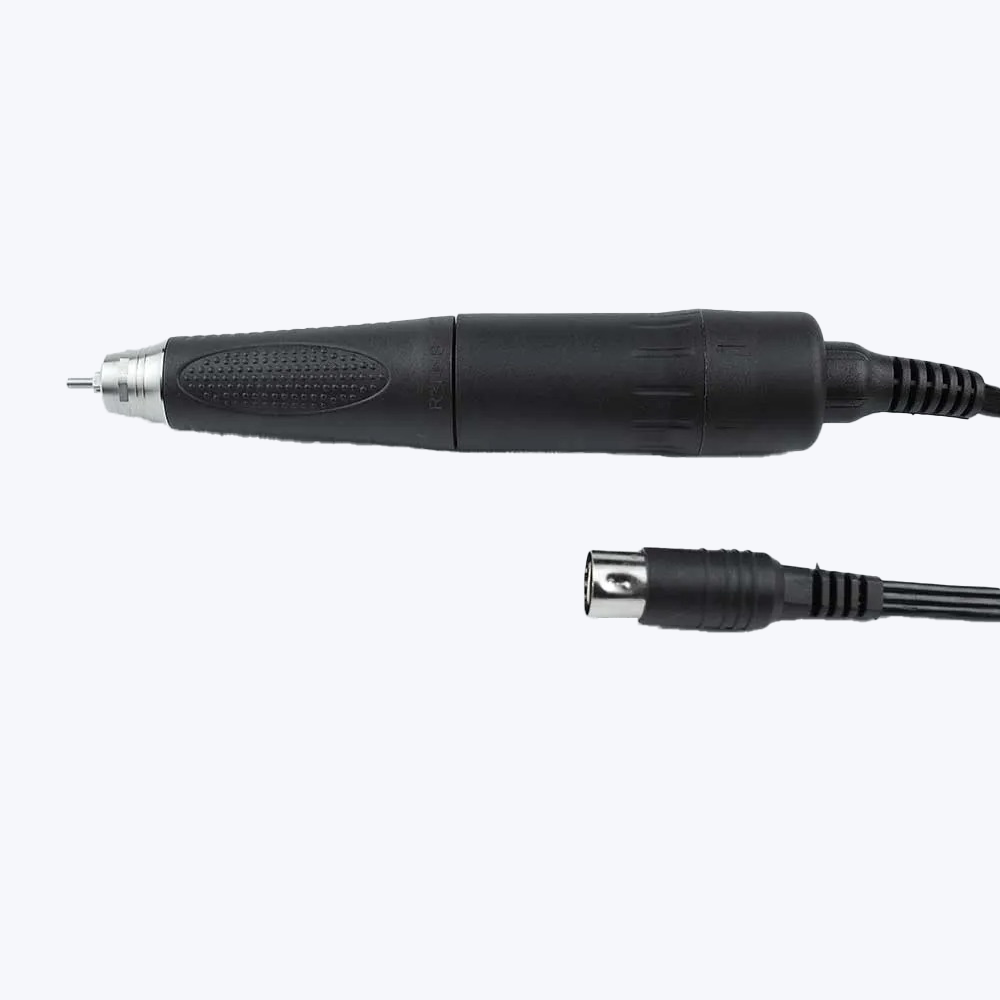

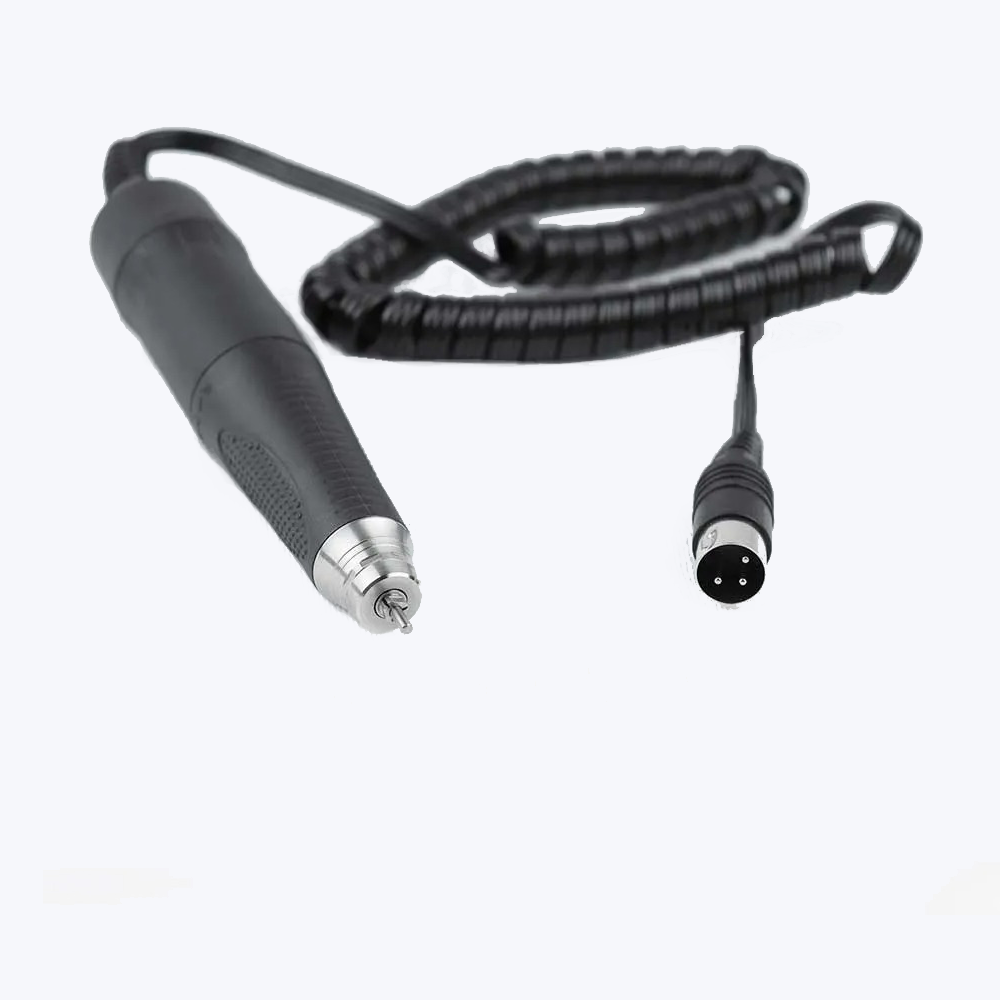

• 1 x Micromotor with Cord

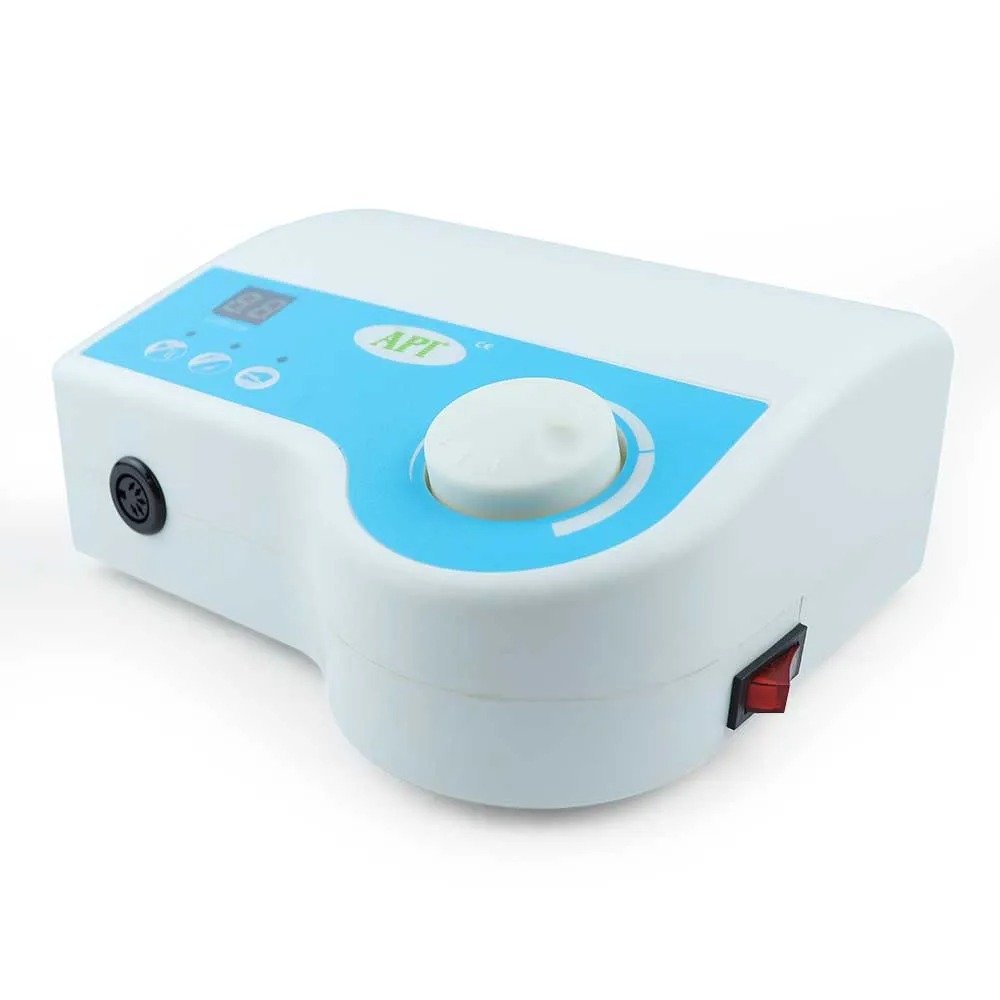

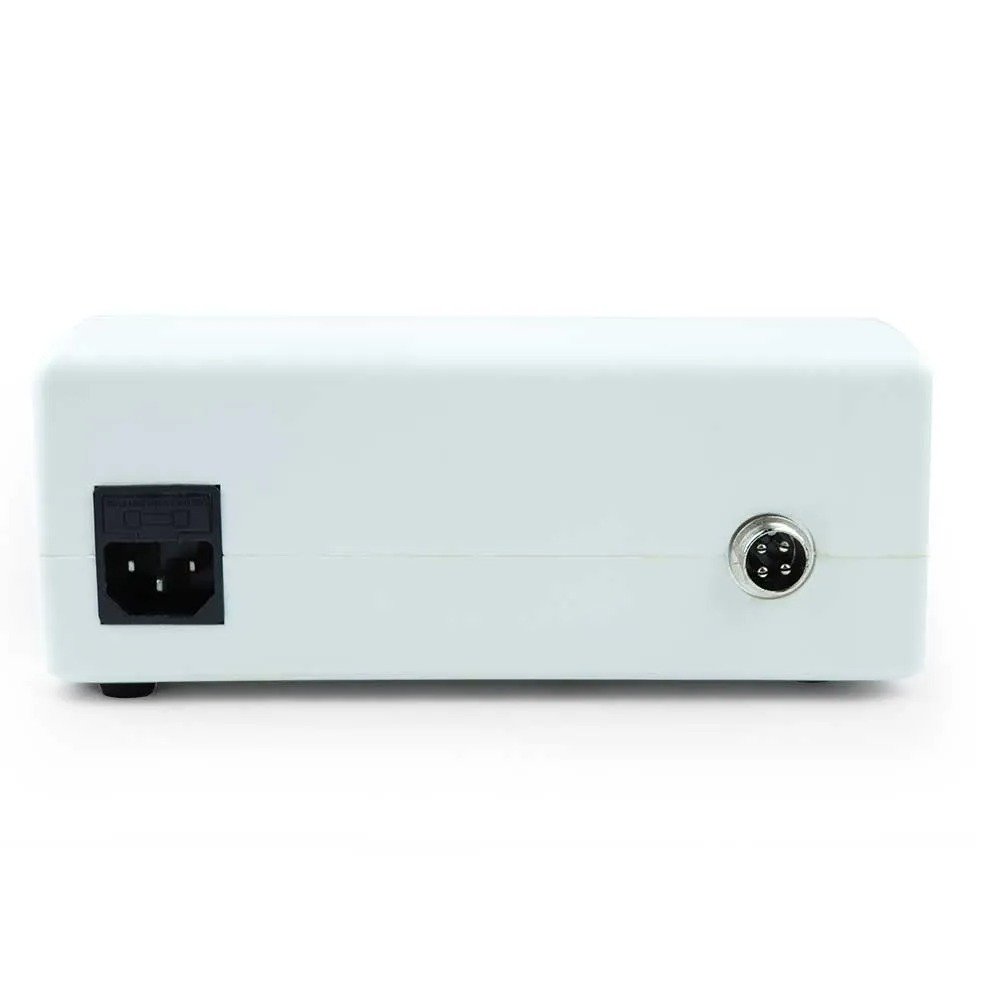

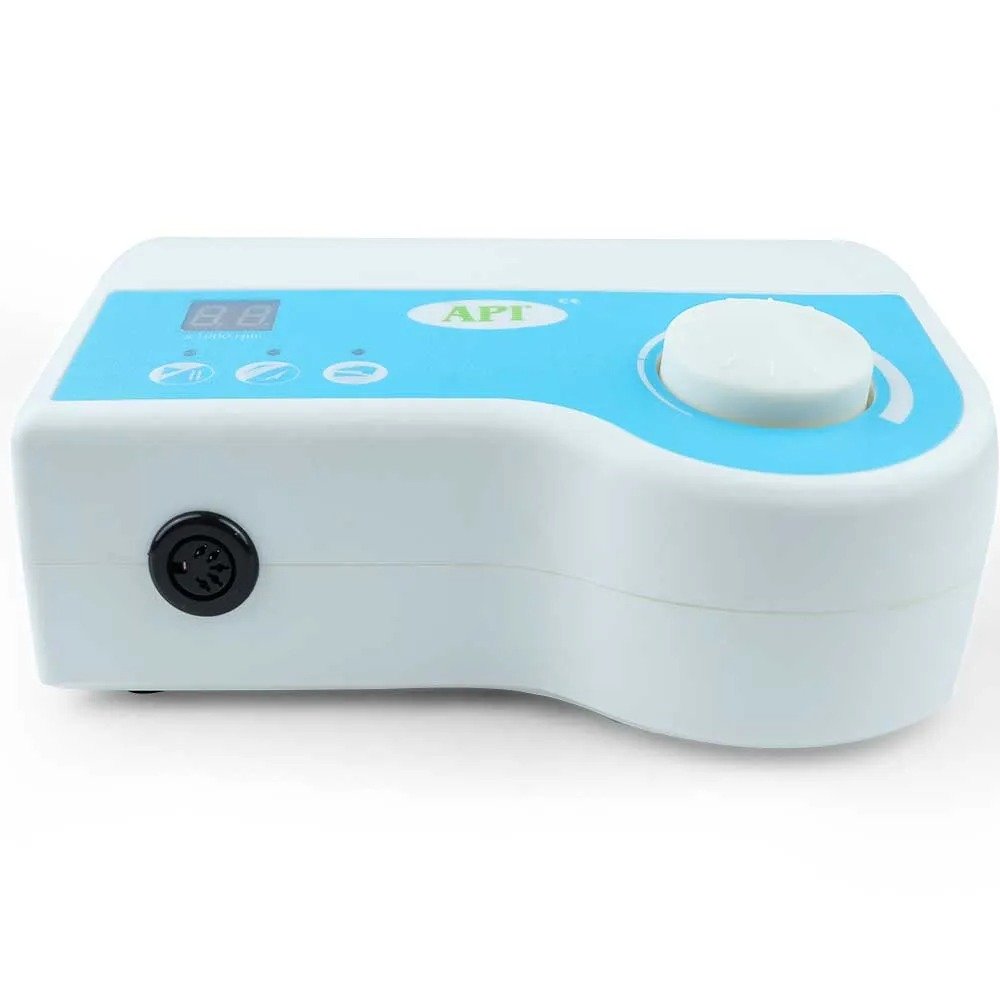

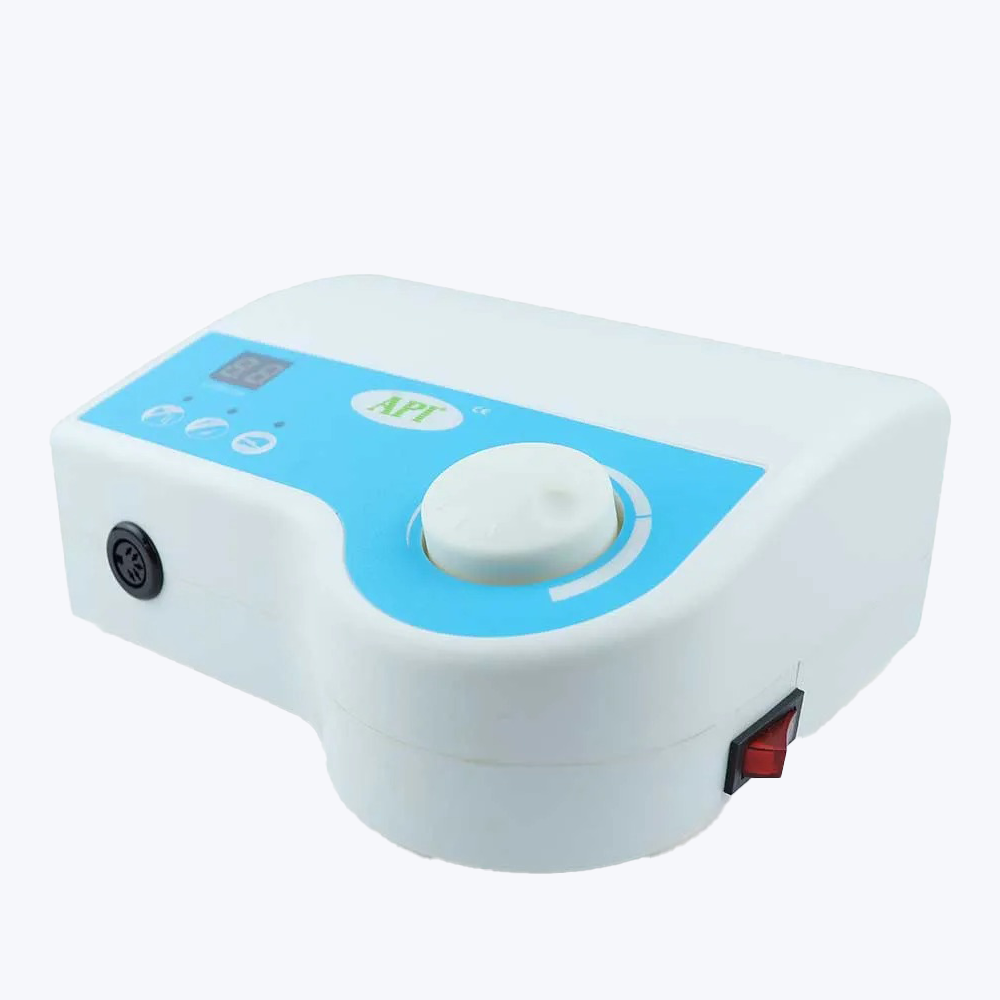

• 1 x Control Box

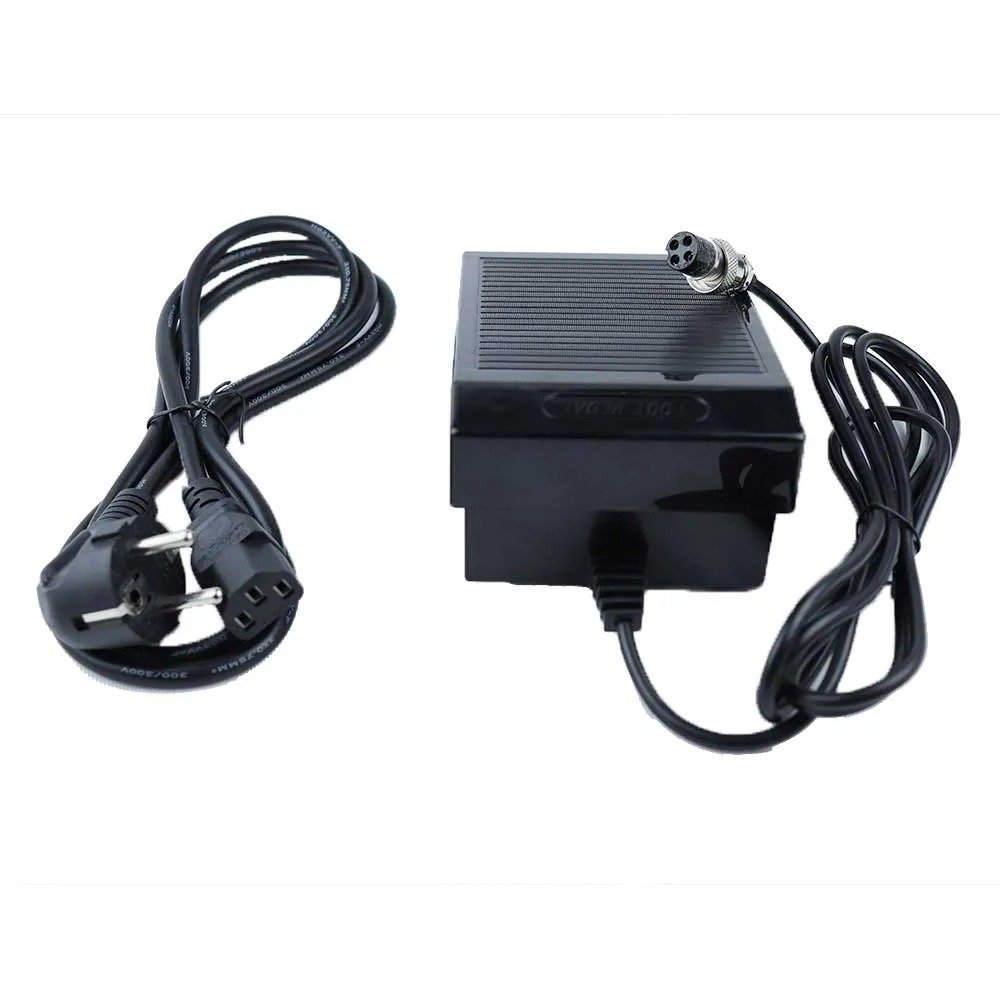

• 1 x Foot Pedal
• 1 x Stand

• Connect the handpiece to handpiece port. Connect the foot pedal to foot pedal port if in need.
• Plug in and switch on the power of control box power switch .
• For hand mode operation, press start/pause start.
• For foot mode operation, press foot control and press the foot pedal to run the handpiece.
• Set the speed control knob to desired speed.
• Select the rotation direction by pressing FWD/REW switch.

NOTE:

• Do not Run the handpiece without bur.
• When handpiece running, do not try to twist it.
• When changing the bur, make sure the handpiece stop running completely.
• After changing the bur, fasten the chuck completely before operating it again.
• After working do not remove the bur from the handpiece.
• Always chose proper rotating speed as per the above acceptable speed chart.
• Do not always operate the unit at the highest speed.
• Do not overload the unit.
• Before switching off the power, stop the handpiece first.
• Disassembly of the unit is strictly prohibited to avoid serious outcomes.
