TECHNICAL SPECIFICATION:

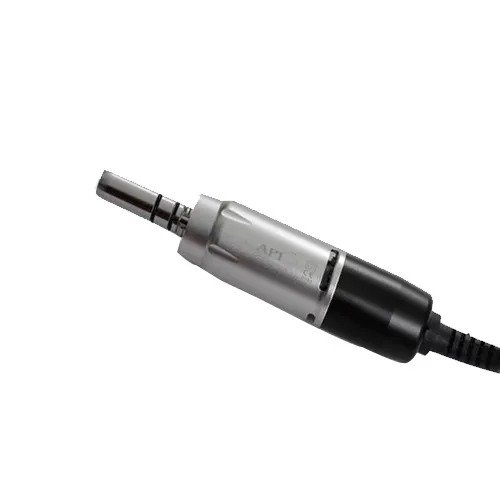

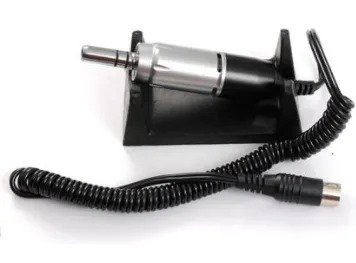

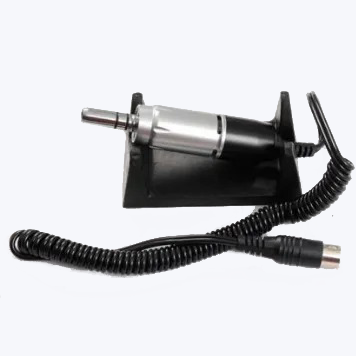

• 1 x Micromotor Engine with cord

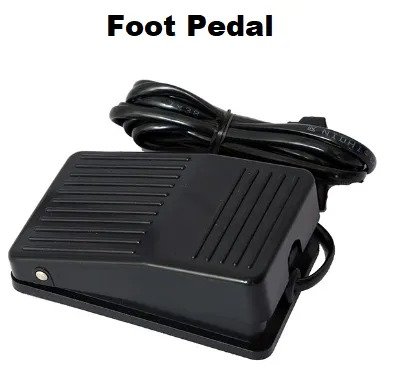

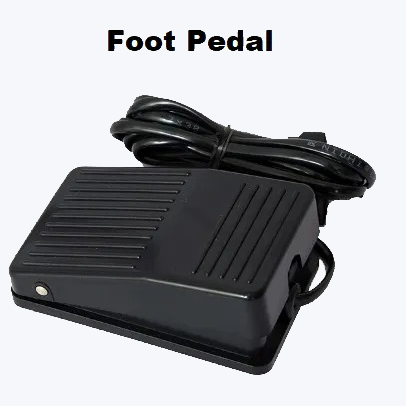

• 1 x Foot pedal

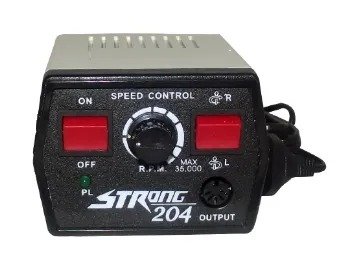

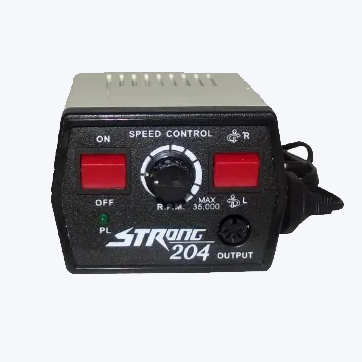

• 1 x Control box

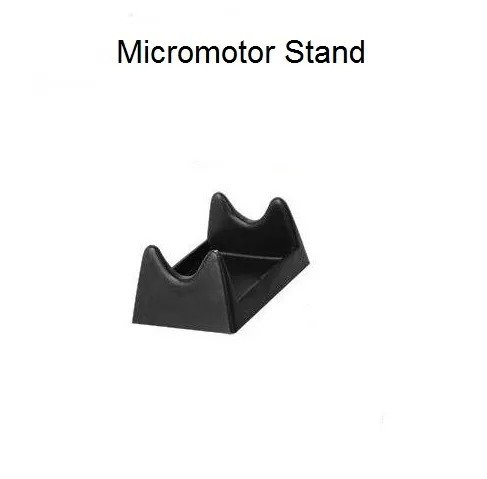

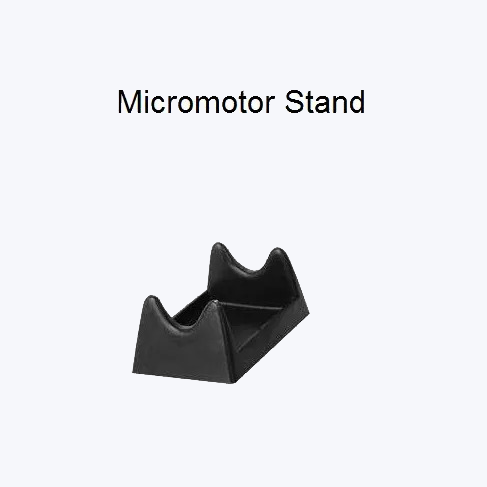

• 1 x Handpiece stand
• 2 x Carbon brush
• Instruction manual

Setup:

• Place the micromotor on a stable and clean surface.
• Ensure that the power source matches the specified input voltage (100,110/220, 240V at 50/60 Hz).

Connect the Foot Switch:

• Attach the foot switch to the designated port on the micromotor.

Power On:

• Turn on the power using the designated switch.

Adjust Speed:

• Utilize the continuously variable speed control to set the desired RPM (Revolutions Per Minute). Start at a lower speed for precision work and adjust as needed.

Direction Control:

• Use the one-touch feature to change the driving direction as required for efficient operation. This is particularly useful for different procedures.

Operate with Foot Switch:

• Control the micromotor using the foot switch for hands-free operation. Press to start and release to stop.

Procedure Execution:

• Carry out trimming and finishing procedures on dentures with the micromotor. The right and left-turning ability provides flexibility for various tasks.

Monitoring Torque:

• Be mindful of the torque (rotational force) provided (280 gf. cm) for optimal performance. Adjust the settings based on the task at hand.

Power Off:

• After completing the procedures, turn off the micromotor using the designated switch.

Cleaning and Maintenance:

• Always follow the safety guidelines provided in the user manual.
• Use appropriate personal protective equipment, if necessary.

Storage:

• Store the micromotor in a cool and dry place when not in use.
