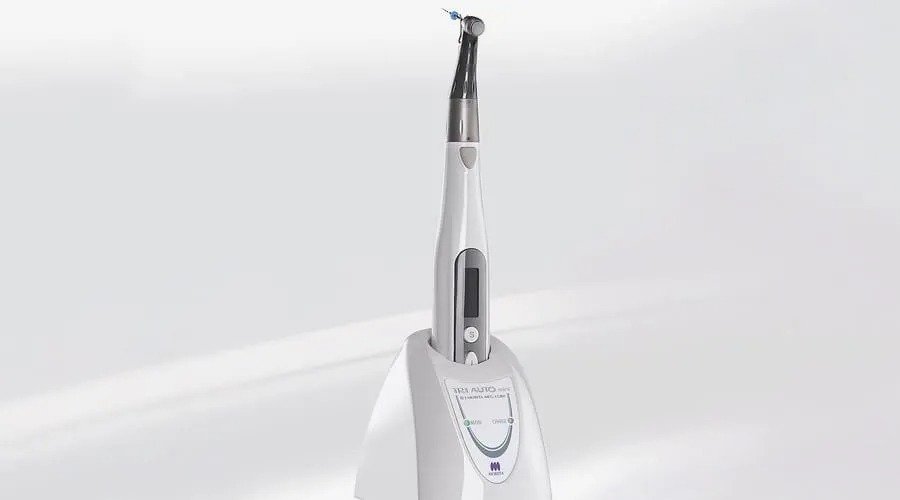

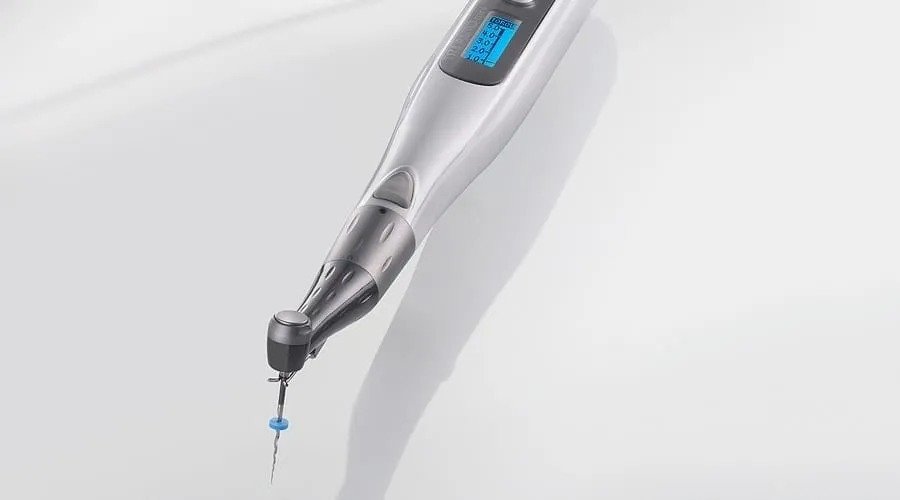

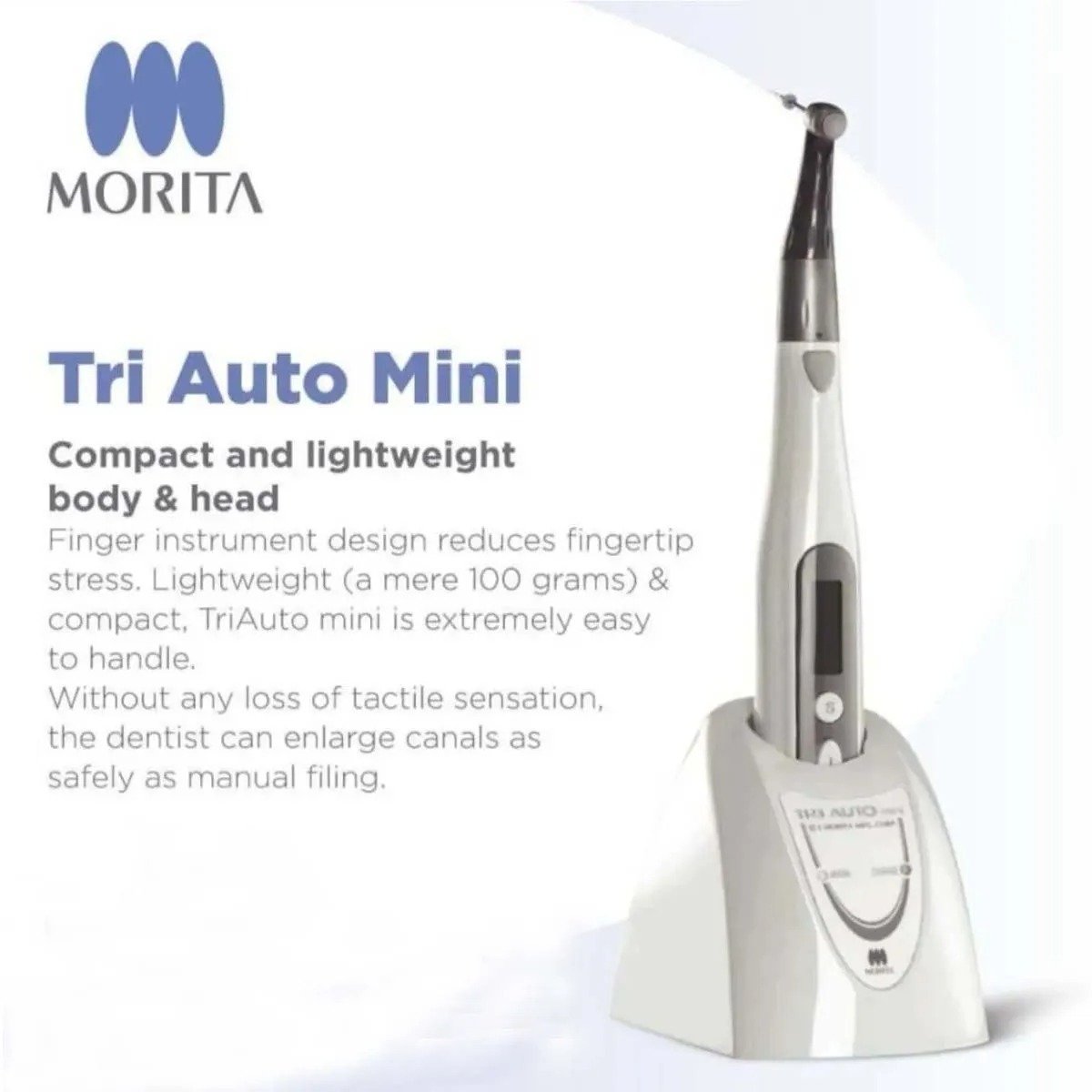

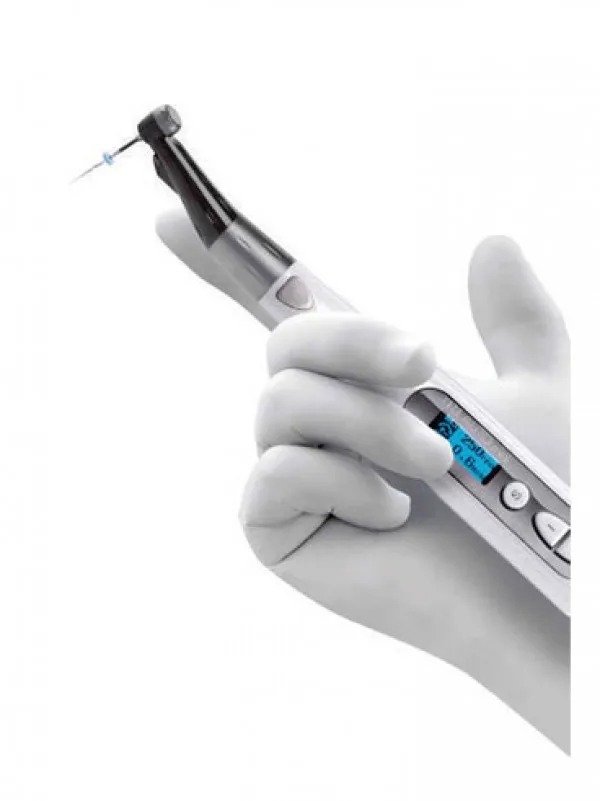

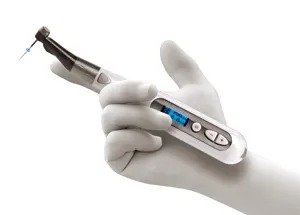

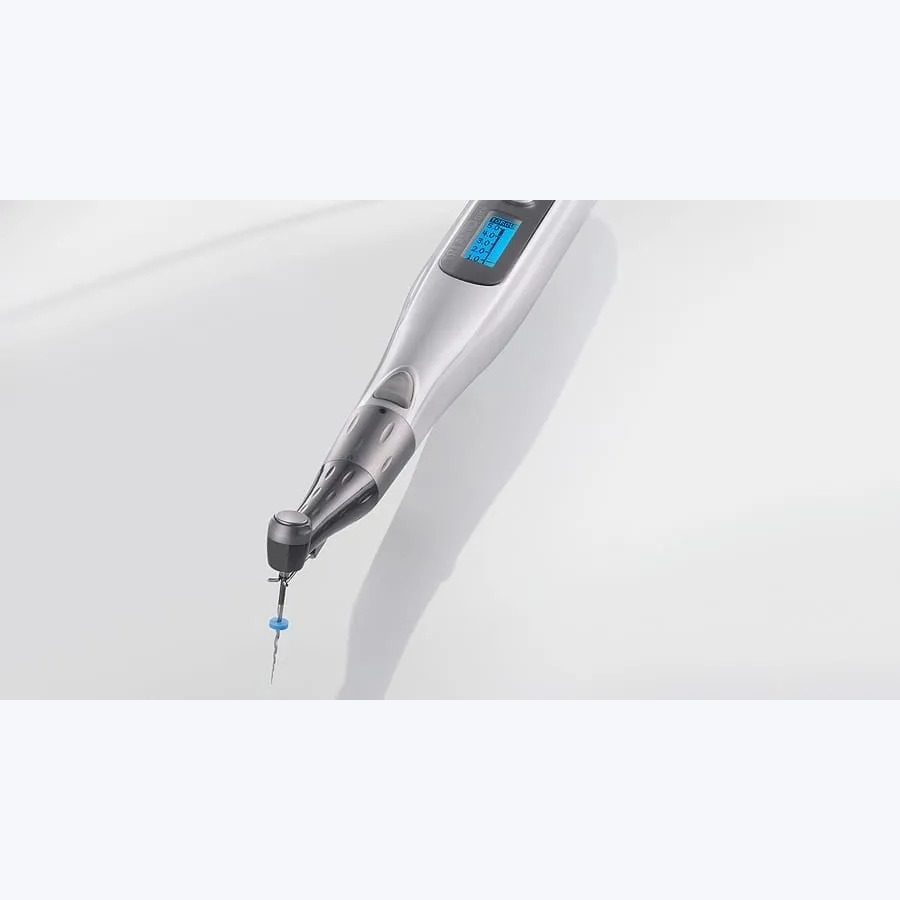

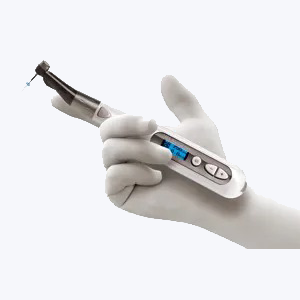

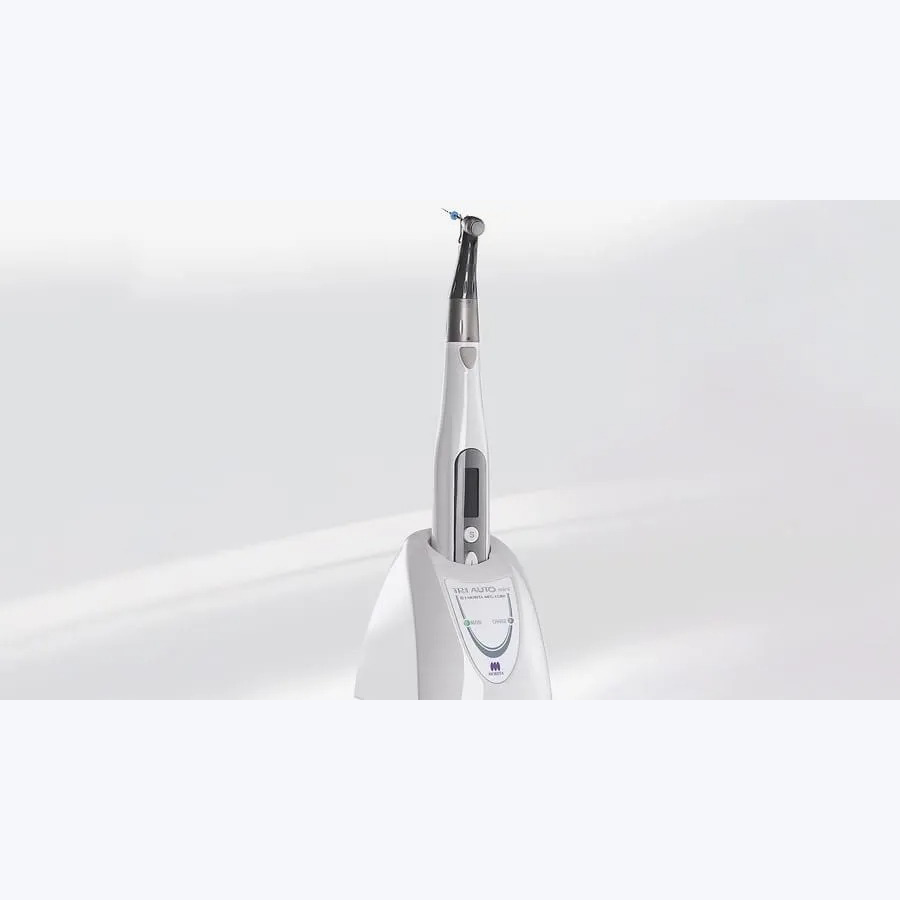

Tri Auto mini Handpiece

• Display: LCD
• Weight: 78 g
• Motor: 50 – 1,000 rpm
• Torque: 3.9 Ncm
• Battery (rechargeable): 3.7 V lithium-ion
• Diameter: 28 mm / Height: 150 mm
• Model: TR-CM
• Torque Reverse Settings (N/cm): 0.2, 0.4, 0.6, 0.8, 1.0, 1.5, 2.0, 2.5, 3.0
• Speed Range: No load( (rpm): 50±5 - 1,000 ±100
• Drive Mechanism: Electric Motor
• Cutting Tool Grip Type: Push Button Latch Type

Handpiece

Dimensions:

• Motor Handpiece: W 28 mm x H 27 mm x L 195 mm
• Head Diameter: 9 mm x H 11 mm
• Weight: 100 g, including contra-angle and lithium batteries
• Power Supply (battery): 3,7 V (lithium ion battery, rechargeable)
• Electric Shock Protection Class: Internal power supply
• Electric Shock Protection Degree: BF applied device

Charger

• Dimensions: W 68 mm x D 108 mm x H 85 mm
• Weight: 350 g
• Power Supply: AC 230 V
• Frequency: 50/60HZ
• Power Consumption: 5W
• Electric Shock Protection Class: Class II
• Classification: Regulated Medical Device (Class II) Special Maintenance Regulated Medical Device

  Tri Auto mini Handpiece

• Display: LCD
• Weight: 78 g
• Motor: 50 – 1,000 rpm
• Torque: 3.9 Ncm
• Battery (rechargeable): 3.7 V lithium-ion
• Diameter: 28 mm / Height: 150 mm
• Model: TR-CM
• Torque Reverse Settings (N/cm): 0.2, 0.4, 0.6, 0.8, 1.0, 1.5, 2.0, 2.5, 3.0
• Speed Range: No load( (rpm): 50±5 - 1,000 ±100
• Drive Mechanism: Electric Motor
• Cutting Tool Grip Type: Push Button Latch Type

• Handpiece

  Dimensions:

• Motor Handpiece: W 28 mm x H 27 mm x L 195 mm
• Head Diameter: 9 mm x H 11 mm
• Weight: 100 g, including contra-angle and lithium batteries
• Power Supply (battery): 3,7 V (lithium ion battery, rechargeable)
• Electric Shock Protection Class: Internal power supply
• Electric Shock Protection Degree: BF applied device

• Charger

• Dimensions: W 68 mm x D 108 mm x H 85 mm
• Weight: 350 g
• Power Supply: AC 230 V
• Frequency: 50/60HZ
• Power Consumption: 5W
• Electric Shock Protection Class: Class II
• Classification: Regulated Medical Device (Class II) Special Maintenance Regulated Medical Device

• 1 x Handpiece, incl. contra-angle handpiece
• 1 x Battery
• 1 x Battery charger

Assembling the Handpiece:

• Ensure the handpiece is properly assembled and connected to the unit.

Powering the Unit:

• Make sure the unit is charged and powered on. If the battery is low, charge it using the provided charger.

Setting the Parameters:

• Set the desired parameters for your endodontic procedure. These parameters include speed, torque, rotation direction, and any other relevant settings. You can program combinations if needed.

Inserting the File:

• Insert the endodontic file into the canal of the tooth you are working on. Make sure the file is properly inserted and secured in the handpiece.

Selecting the Right File Tip Location:

• If you have the Root ZX Mini connected, monitor the file tip's location in the canal by observing the display. The display will change color to indicate the file tip's position within the canal.

1. Commence Root Canal Procedure:

• Start the endodontic procedure. The handpiece will provide automatic controls for speed, torque, and rotation direction. It's designed to prevent file jamming and breakage.

Monitoring the Procedure:

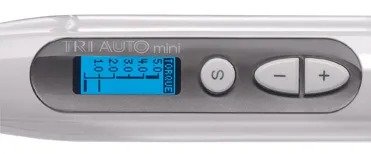

• Keep an eye on the LCD display for any changes in speed, torque, or file tip location. The display provides essential information during the procedure.

Completing the Procedure:

• Continue the endodontic procedure as necessary, and use the tactile feedback provided by the handpiece to ensure precise and safe instrumentation.

Auto Apical Reverse (if needed):

• If the Root ZX Mini is connected, it will monitor the file tip's position, and automatic functions like Auto Apical Reverse can be activated when necessary.

Finishing the Procedure:

• Once you have completed the root canal treatment, carefully remove the endodontic file from the canal.

Charging the Unit:

• After use, recharge the unit as needed to ensure it's ready for your next procedure.

Disconnecting and Storing:

• Disconnect any accessories, power off the unit, and store it in a safe and dry place.
