Shank type - Friction grip

Material - Stainless steel Shank Coated with diamond particles

Autoclavable upto 134°C

Color band on shank :

• Regular - Blue
• Fine - Red

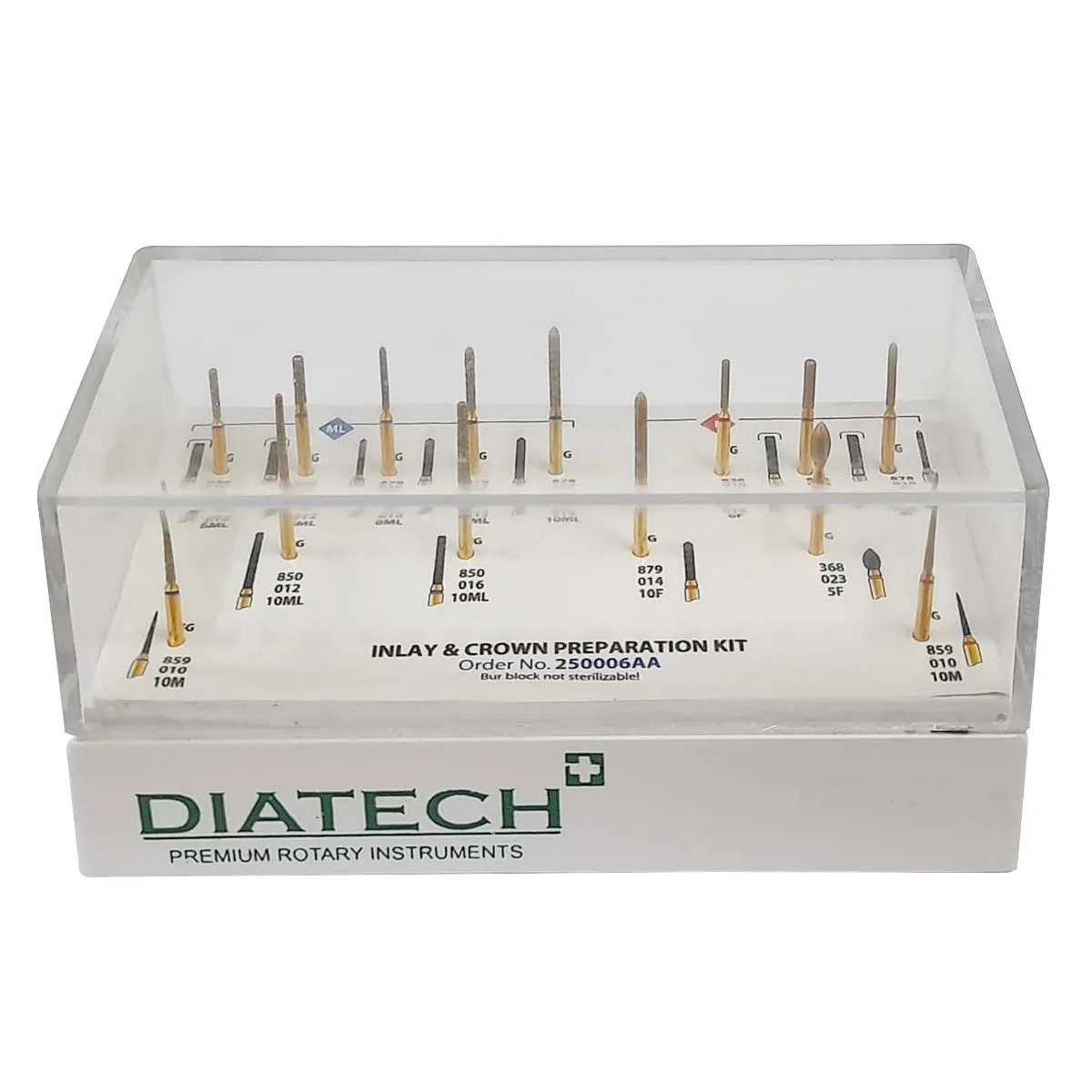

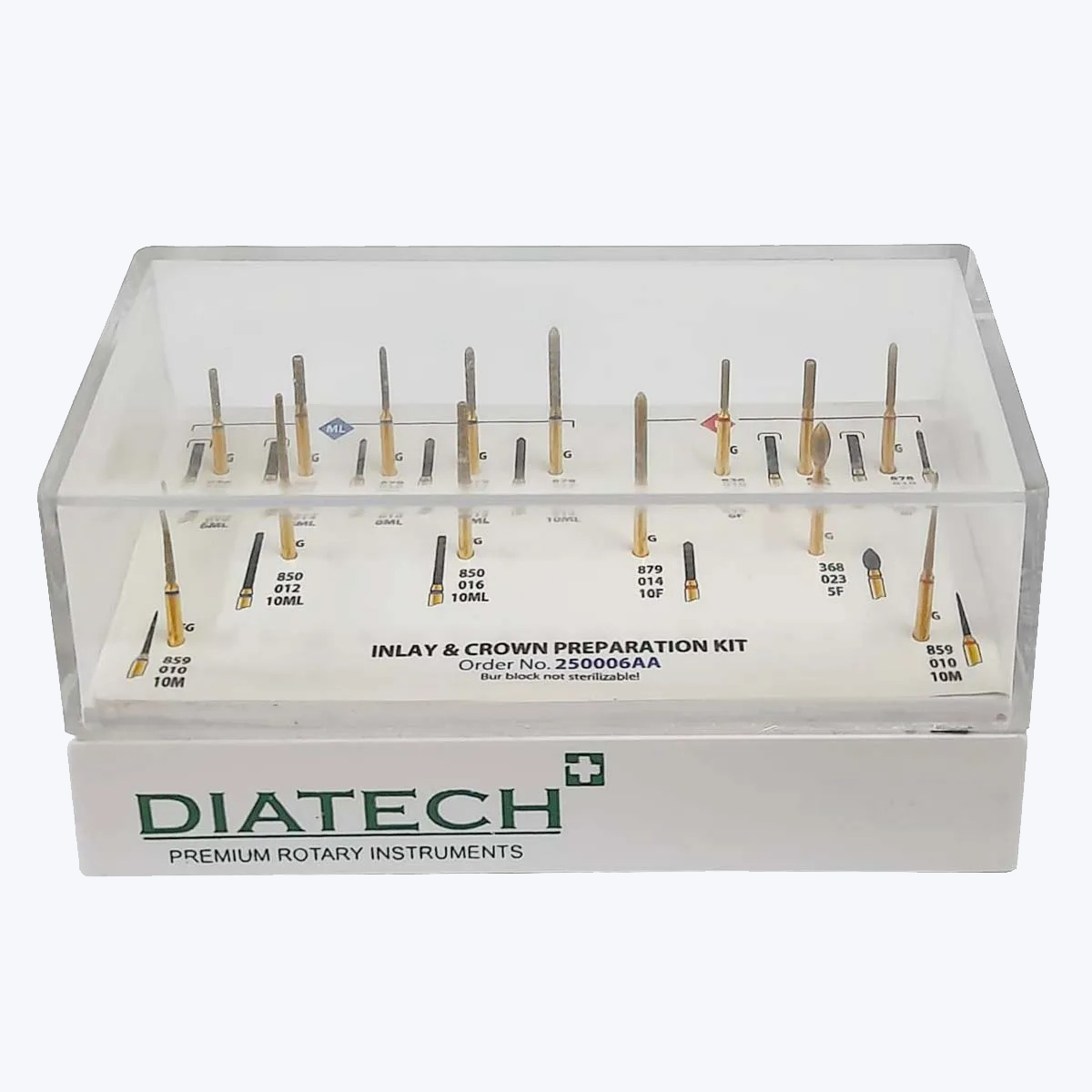

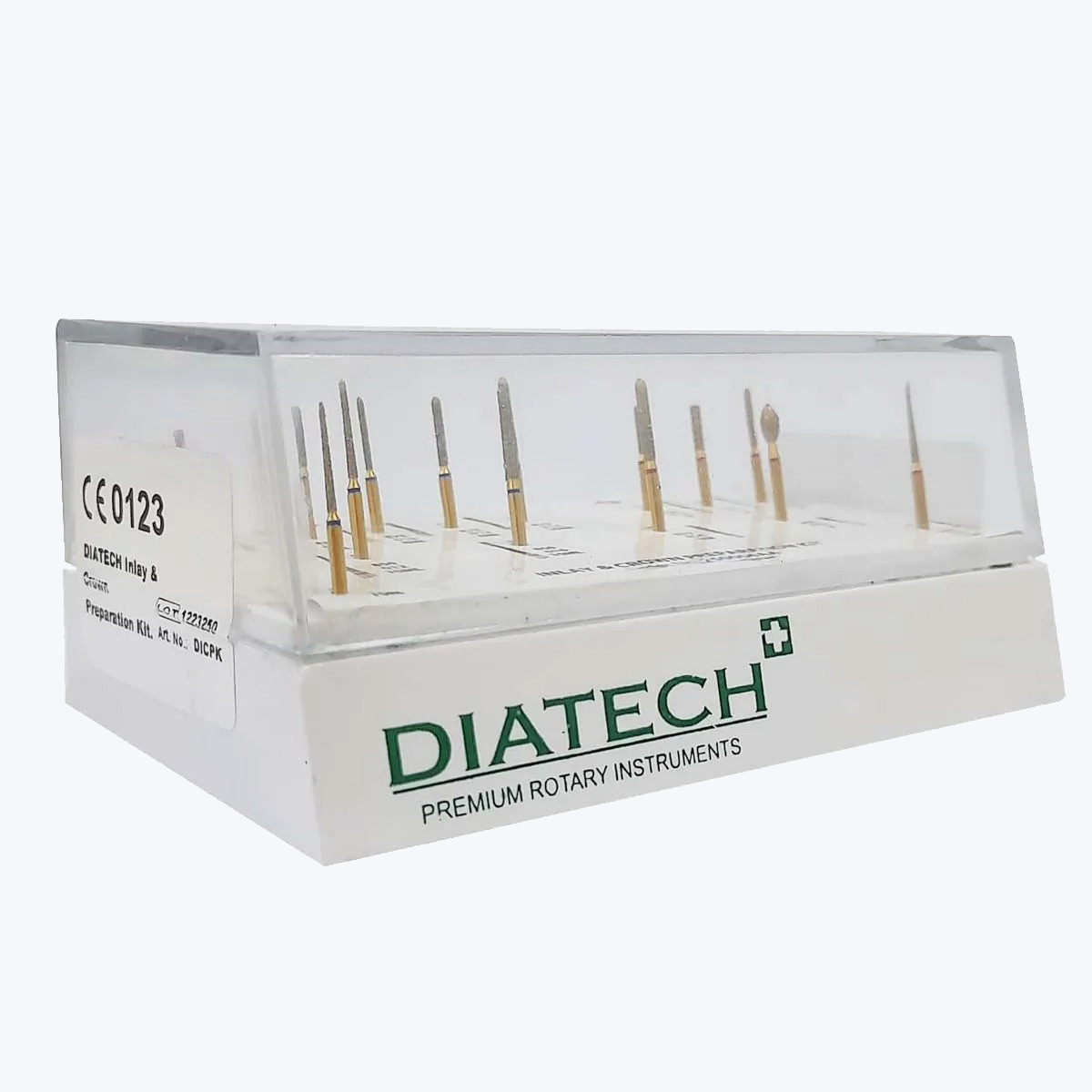

Kit of 14 Burs:

• 1 x 836-010-6ML
• 1 x 836-014-6ML
• 1 x 878-010-8ML
• 1 x 878-012-8ML
• 1 x 879-014-10ML
• 1 x 836-010-6F
• 1 x 836-014-6F
• 1 x 878-010-8F
• 1 x 850-012-10ML
• 1 x 850-016-10ML
• 1 x 879-014-10F
• 1 x 368-023-5F
• 1 x 859-010-10ML
• 1 x 859-010-10F

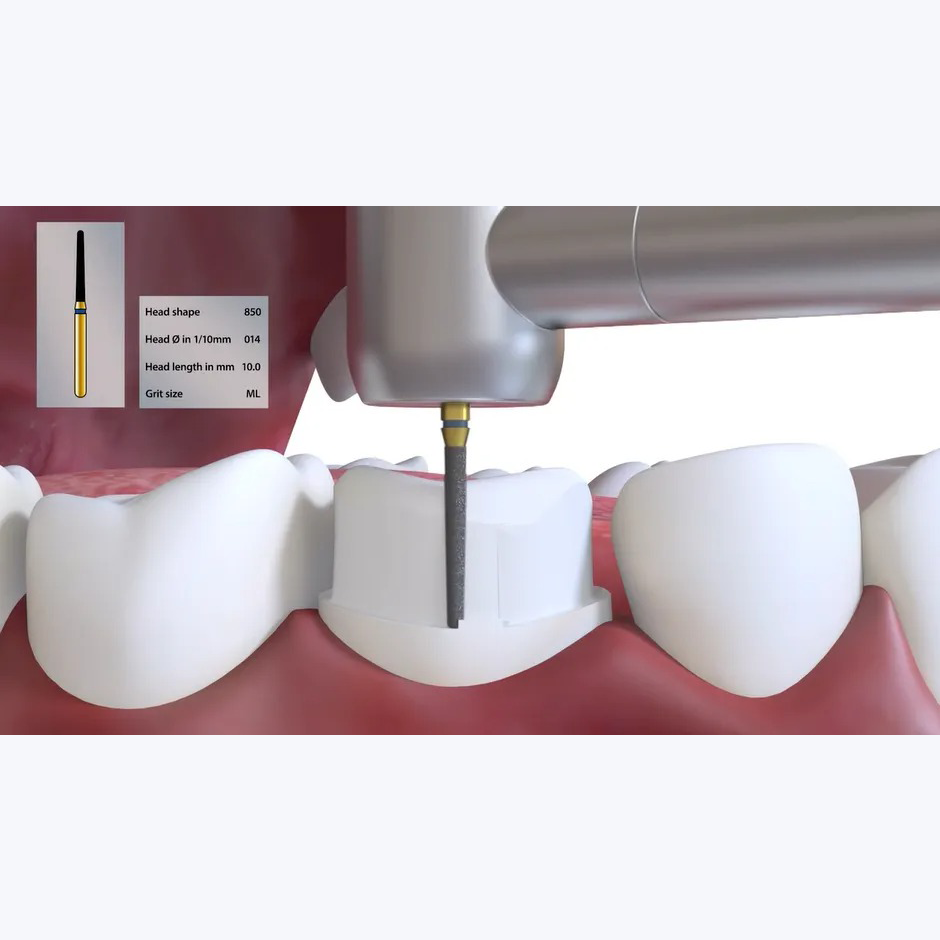

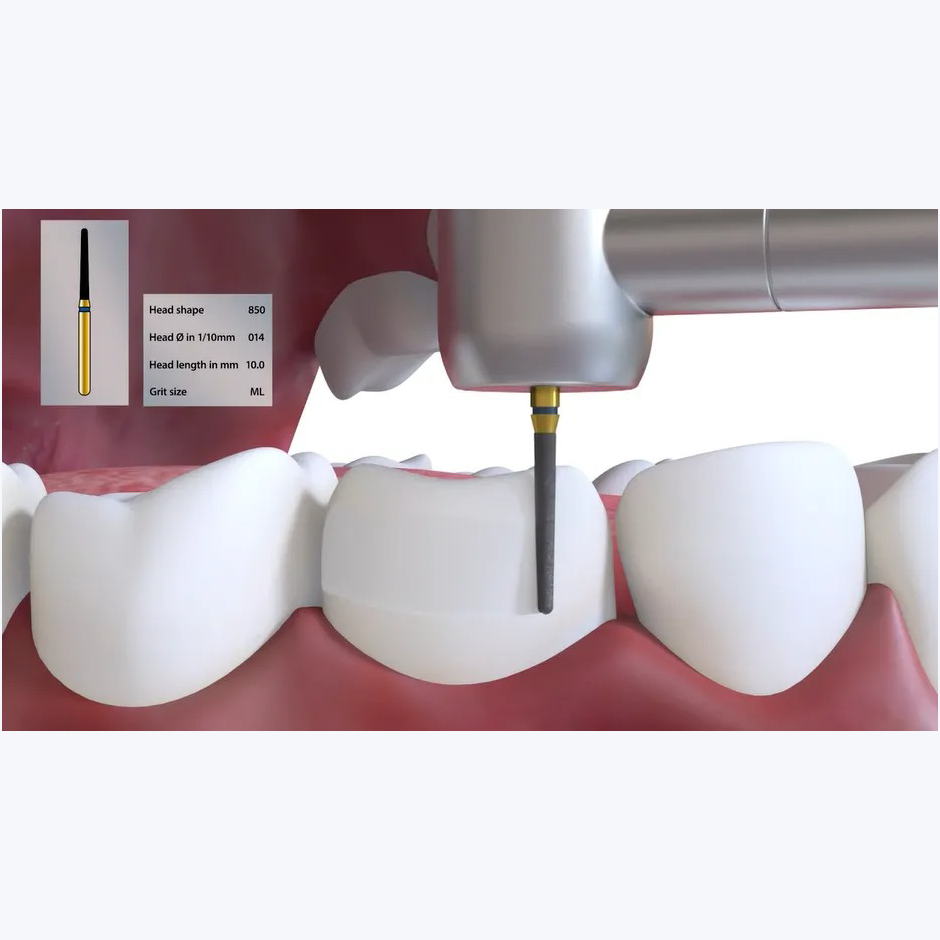

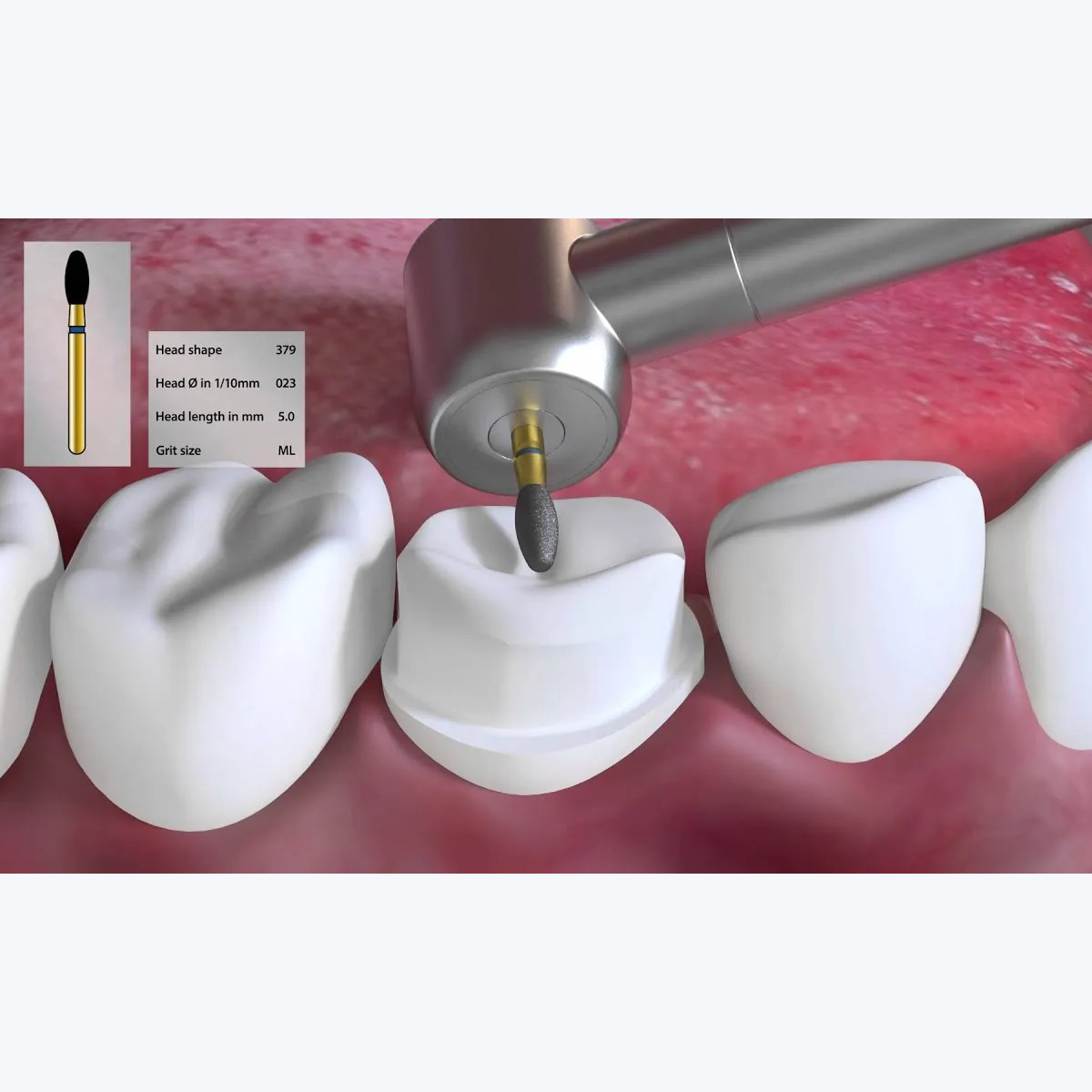

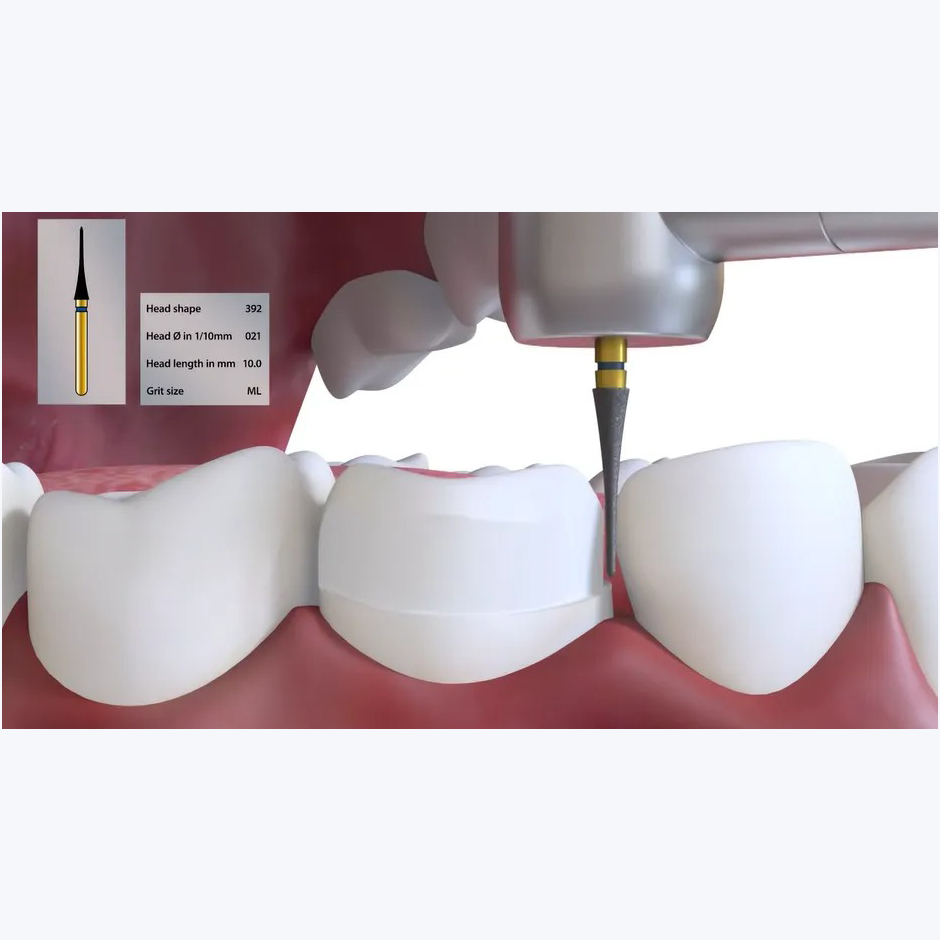

• Insert the instrument as deeply as possible into the chuck (Friction Grip).
• Set the handpiece at the required working speed before applying the instrument to the treated area.
• Apply a maximum operating force of 0.4 [N] and do not exceed a speed of 230'000 [rpm].
• Activate water spray during the entire treatment (minimum 50 mL/min).
• Regulate water flow in case of water excess or shortage.
• It is recommended to use a dental dam.
• Use the instruments over the entire length of their working part and not just at the tip, so as to avoid an unconscious increase of the contact pressure causing local overheating.
• Once the preparation has been completed, remove the instrument from the site and allow it to come to a standstill.
• It is recommended to wear gloves and safety glasses.
