• Accuracy: The device claims a high level of accuracy in apex location readings, with a reported accuracy rate of 97.7%. This accuracy helps in determining the precise working length of the root canal.
• Radiograph Reduction: The ProPex Pixi helps reduce the number of radiographs required during root canal treatment. By providing accurate apex location information, it minimizes the need for additional X-rays, saving time and reducing radiation exposure for both the clinician and the patient.

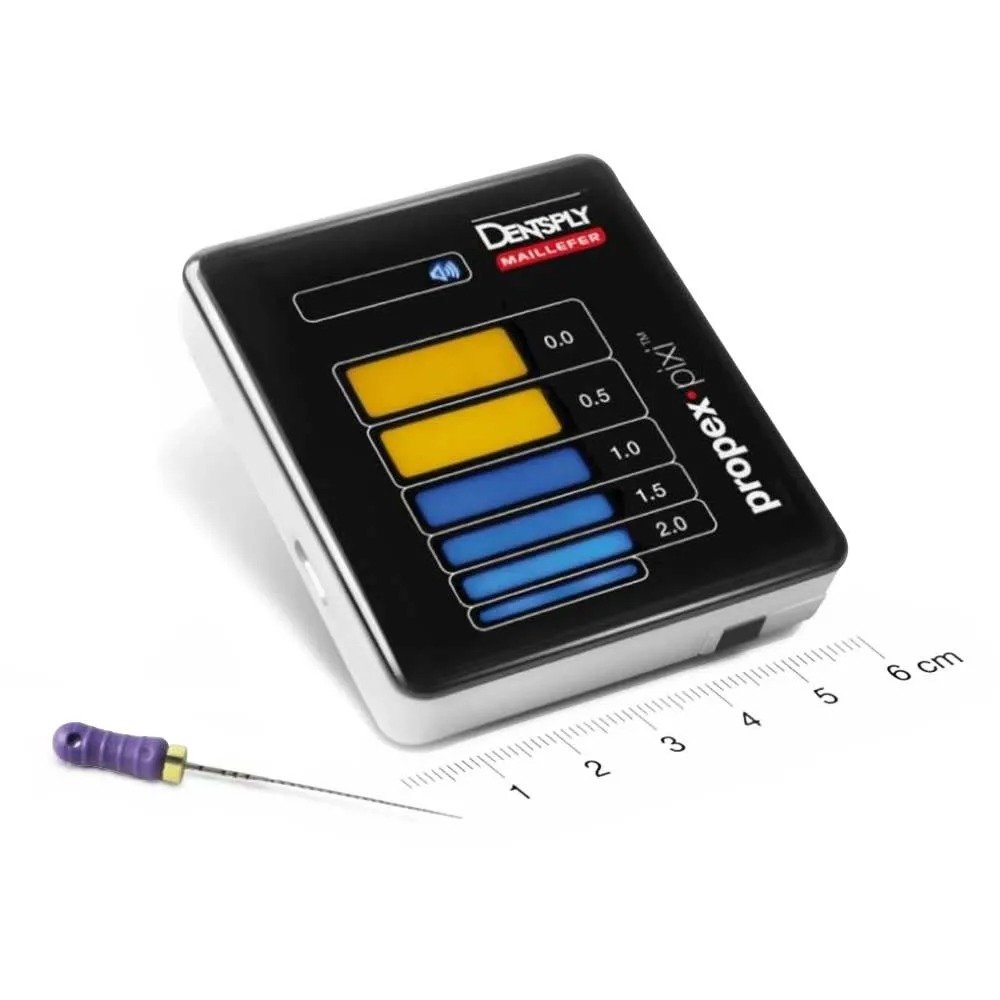

• Portable and Compact: The device is designed to be small and pocket-sized, making it highly portable and easy to handle during treatment. Its compact size also ensures minimal storage and transportation space requirements.
• Pain and Discomfort Reduction: Accurate apex location determination by the ProPex Pixi helps reduce pain and discomfort experienced by the patient during root canal treatment. Precise measurements enable clinicians to perform the procedure with greater precision and efficiency.
• Perforation Detection: The ProPex Pixi is helpful in detecting perforations, which are unintended communications between the root canal and surrounding structures. Early detection of perforations is crucial for successful treatment outcomes, and the device aids in identifying such complications.

• 1 Pixi Apex Locator
• 1 x Measuring wire
• 1 x Connection hook
• 2 x Lip clips
• 1 x Charger
• Instructional Manual

Connecting the AC Plug Adapter:

• Select the appropriate plug adapter that matches your electric power outlet.
• Connect the plug adapter to the charger cable.

Recharging the Battery:

• Complete the measurements and disconnect the measurement cable from the patient.
• Unplug the measurement cable from the device.
• Connect the charger cable to the ProPex Pixi.
• Connect the charger to a power source outside the patient's environment, keeping it at least 1.5 mm away from the patient.
• The battery icon on the device will blink, indicating that the battery needs recharging. However, the device can still be used for several treatments before it shuts down.
• The battery symbol will stop blinking and remain steady once the charging is completed. Note: Charging typically takes approximately 12 hours (24 hours after a long period of non-use). The device cannot be used while charging.

Cable Connection Test:

• Connect the measurement cable to the device and turn on the ProPex Pixi.
• Attach the lip clip to the patient, ensuring proper cleaning of accessories before the test.
• The "Connection test" icon should appear on the device's status bar. If no icon appears, consider replacing the connection hook or measurement cable.

Apex Localization:

• Disconnect the charger from the device (if connected).
• Plug the measurement cable into the device and turn on the ProPex Pixi by pressing the "ON/OFF" button.
• Attach the lip clip to the patient.
• Gently insert the file into the canal.
• Connect the connection hook to the metal shaft of the file.
• The first bar on the device will stop blinking accompanied by a double beep signal, indicating the start of apex localization.

Sound Adjustment:

• The ProPex Pixi has an audio indicator to monitor the file's progression.
• Press the "VOLUME" button successively to adjust the volume to one of the four levels: mute, low, normal, and high.
