• Light Source: High-performance LED
• Wavelength Range: 430 - 480 nm
• Peak Wavelength: 444 - 452 nm
• Light Intensity: 1470 mW/cm² (between 400 and 515 nm)
• Light Emission Area: 60 - 65 mm² (optically active)
• Power Supply: Lithium-ion battery
• Exposure Time Settings: 5, 10, 15, 20 seconds; Continuous mode (120 seconds); Tack-cure mode (1 second)
• Battery Capacity: 2300 mAh

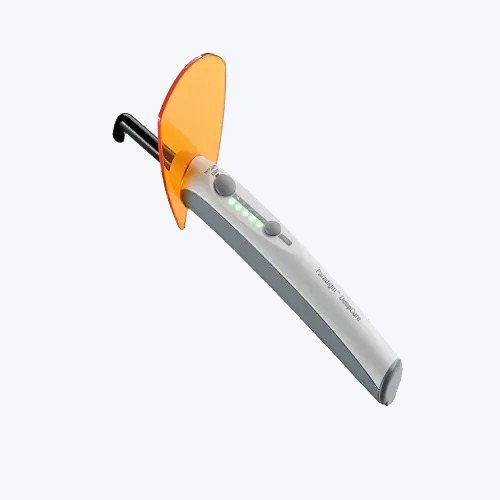

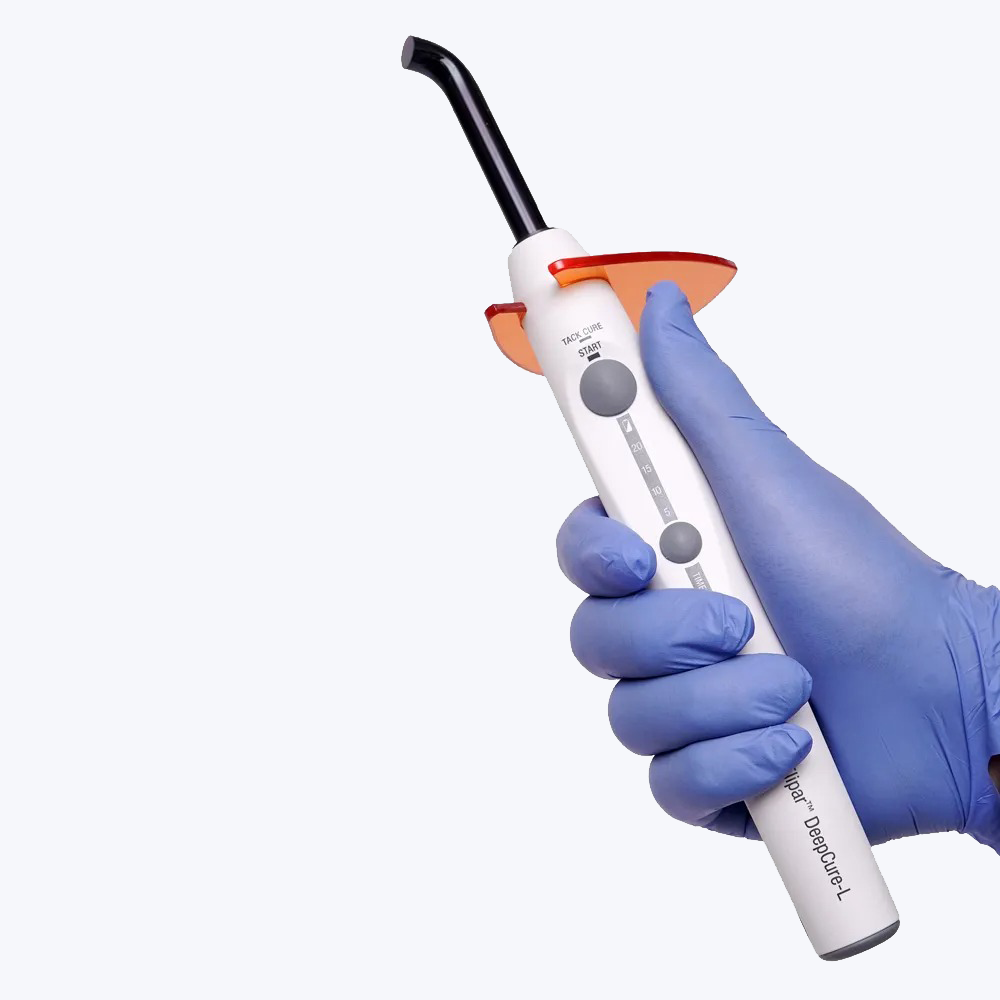

1 x Elipar DeepCure L LED Curing Light

Preparation:

• Ensure the device is fully charged before use.
• Verify that the light guide is clean and securely attached to the handpiece.

Power On:

• Press the power button on the handpiece to turn on the device.

Select Exposure Time:

• Choose the appropriate exposure time setting for the dental material being cured: 5, 10, 15, or 20 seconds, continuous mode (120 seconds), or tack-cure mode (1 second).

Positioning:

• Direct the light beam towards the area requiring treatment, maintaining a safe distance from oral tissues.

Curing Process:

• Hold the handpiece steady and activate the curing light.
• Ensure proper illumination of the treatment area throughout the selected exposure time.

Post-Curing:

• After curing, deactivate the light and remove the handpiece from the treatment area.

Repeat or Adjust:

• Repeat the process for additional curing as necessary or adjust the exposure time based on clinical judgment.

Power Off:

• Turn off the device by pressing the power button on the handpiece.

Charging:

• Recharge the handpiece by connecting it to the charger when the battery power level indicator shows a steady red light.

Maintenance:

• Clean the light guide and handpiece regularly as per the manufacturer's instructions to maintain optimal performance.

Storage:

• Store the device in a safe and clean environment, placing the handpiece on a flat surface when not in use.

Safety Precautions:

• Follow all safety instructions provided in the user manual to prevent injury or damage.
• Use appropriate protective equipment such as goggles to shield eyes from intense light.
