TECHNICAL SPECIFICATIONS:

• Sterilization Method: Pressure steam
• Sterilization scale: All kinds of virus,bacteria,prion.
• Sterilization Temperature: 121Centi degree, 134Centi degree,user-defined
• Sterilization time: 121C- 20 minutes, 134C - 4 minutes,user-defined (user-defined time)
• Sterilization result: 100% completed sterilization
• Intended use: All wrapped or non-wrapped, solid, hollow load products type A and porous products
• Inner Micro-Printer
• CEME or ULKA Valve & Pump
• The Jet type of Steam Generator
• Imported Double Head Vacuum Pump
• Chamber punched by #304 Stainless Steel

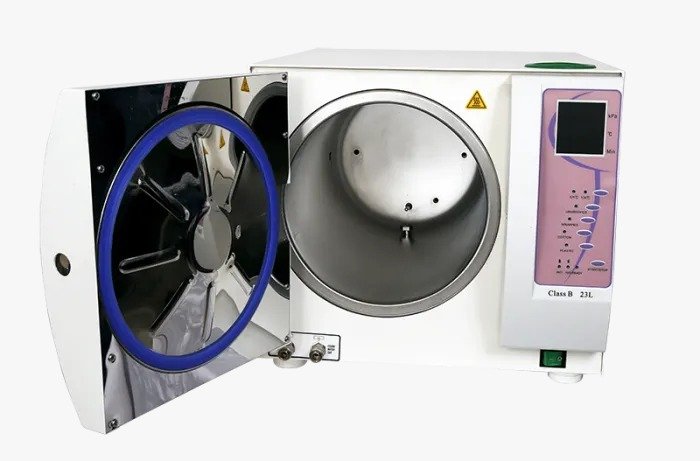

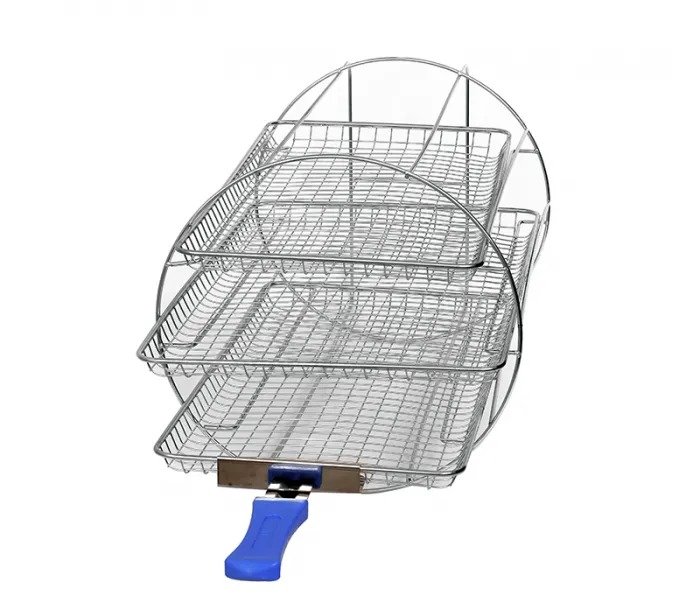

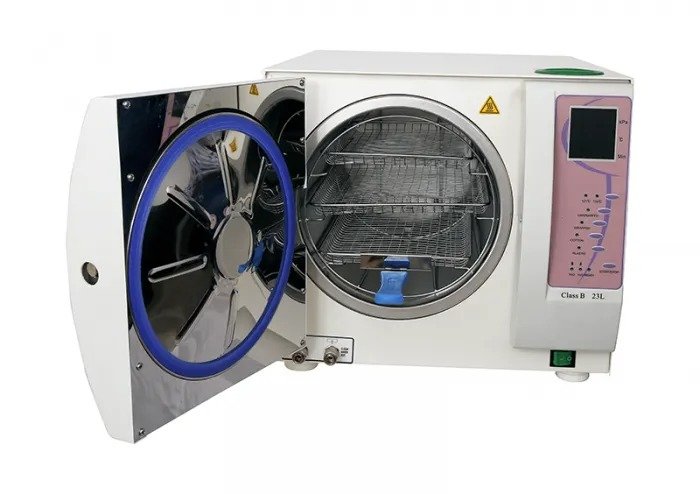

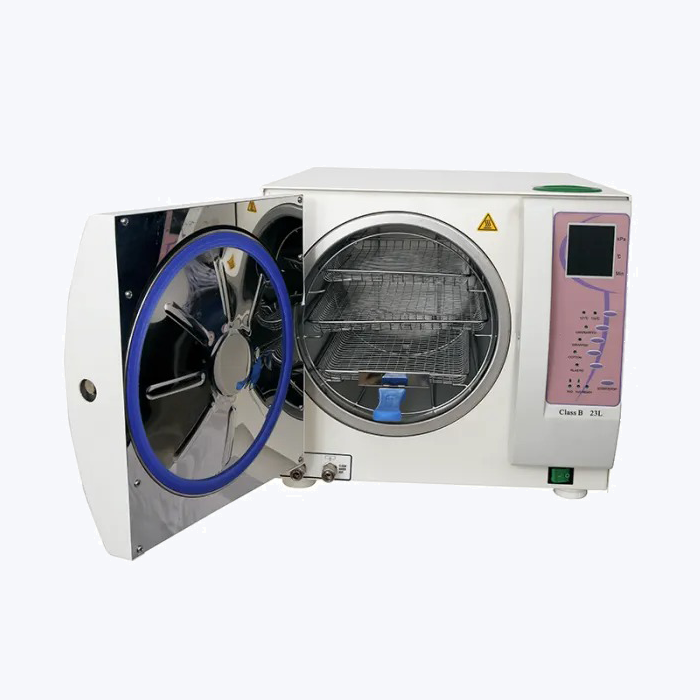

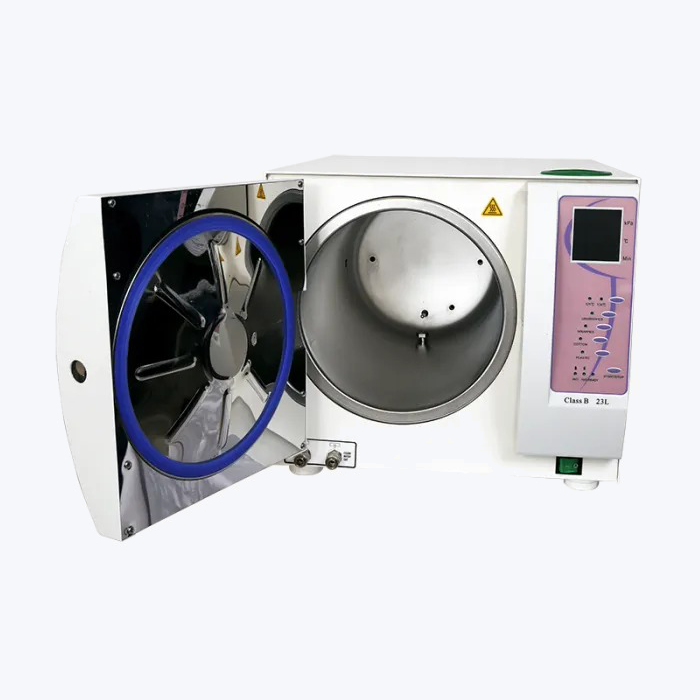

• 1 Complete unit of Autoclave with internal sterilization basket

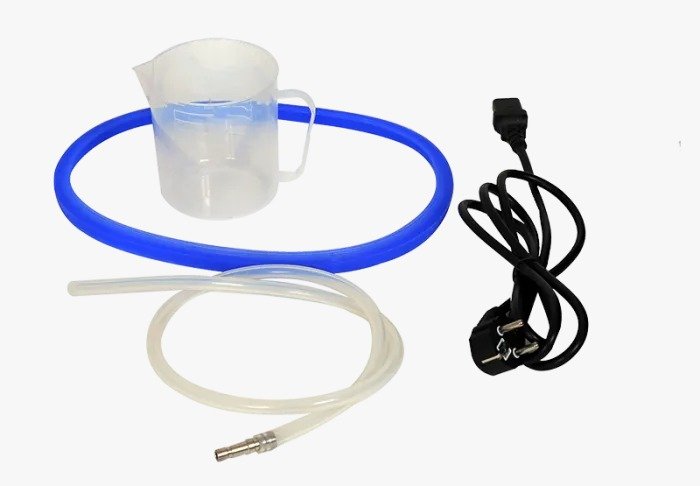

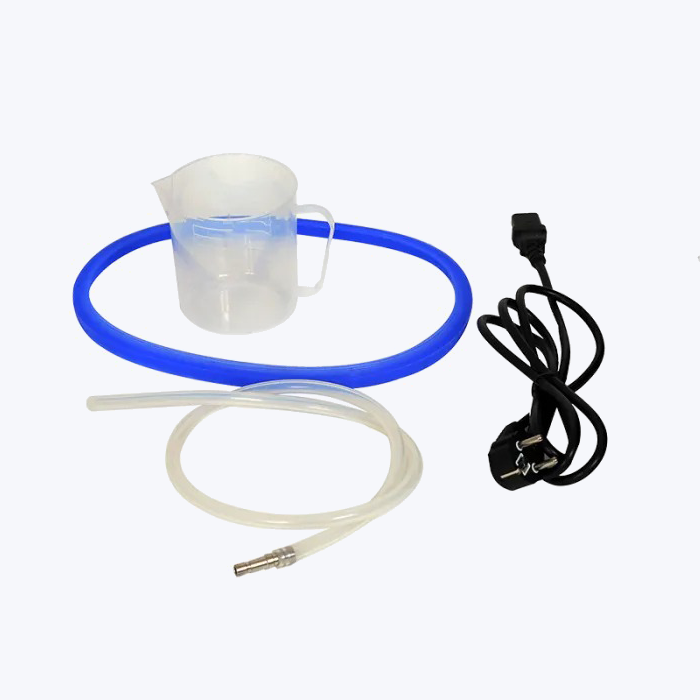

• 1 x Adapter
• Necessary tubings

Preparation:

• Ensure the autoclave is properly connected to a power source.
• Check that the water reservoir is filled with distilled water.
• Verify that the door seals and gaskets are in good condition.

Loading:

• Carefully load dental or medical instruments into the sterilization chamber.
• Ensure proper spacing between items to allow for effective sterilization.
• Avoid overloading the chamber to maintain optimal sterilization conditions.

Setting Parameters:

• Turn on the autoclave and access the control panel or digital interface.
• Set the desired sterilization parameters, including temperature, time, and any specific requirements for your instruments.

Initiate Sterilization Cycle:

• Close the autoclave door securely.
• Start the sterilization cycle using the control panel or digital interface.

Monitoring:

• Monitor the digital display for real-time information on temperature, pressure, and cycle progress.
• Address any alarms or notifications promptly.

Completion and Venting:

• Once the sterilization cycle is complete, allow the autoclave to vent and depressurize before attempting to open the door.
• Follow any safety procedures for door opening, and ensure the autoclave has completed its venting process.

Print Documentation (if applicable):

• If your autoclave is equipped with a built-in printer, check and print the sterilization documentation for record-keeping.

Unloading:

• Open the autoclave door and carefully unload the sterilized instruments.
• Allow the instruments to cool before handling.
